Diagram 2/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

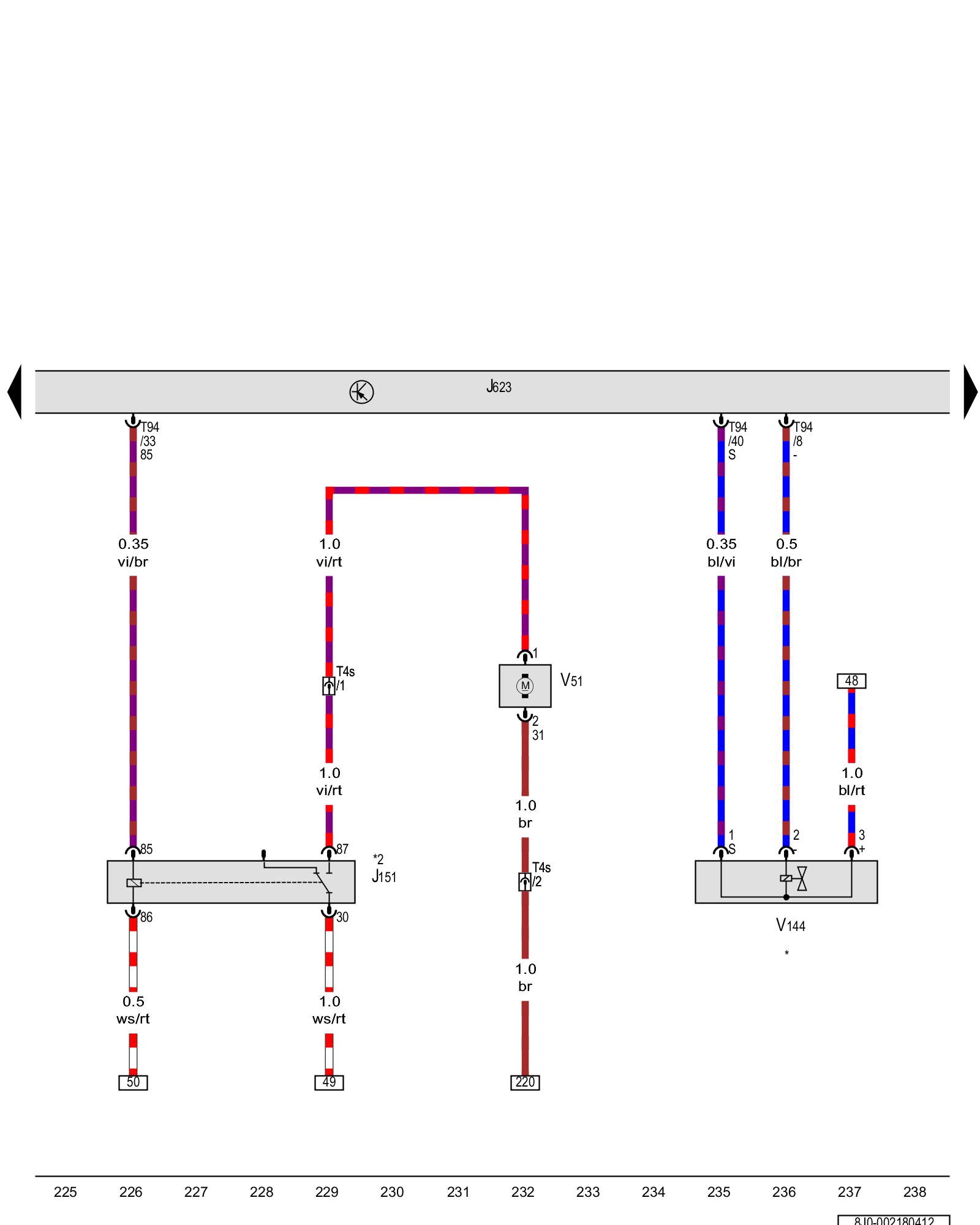

Coolant circulation pump relay, Engine control module, Leak detection pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant circulation pump relay Relay carrier in electronics box engine compartment

J623 - Engine control module Component Locations

T4s - 4-pin connector, in the engine compartment, left front

T94 - 94-pin connector Locations

V51 - After-run coolant pump Locations

V144 - Leak detection pump Locations

* - Only for vehicles with a fuel system diagnostic pump

*2 - Relay and fuse carrier in the engine compartment E-box

Previous Diagram 2/17 (Tracks 211-224)

Next Diagram 2/19 (Tracks 239-252)
