Steering Column Electronic Systems Control Module

Steering Column Electronic Systems Control Module

- If control module is replaced, select Replacement function for appropriate control module in Guided Fault-Finding routine.

Use the Vehicle Diagnosis, Testing and Information System to do so.

Removing

- Disconnect battery ground wire.

- Observe airbag system safety precautions. Refer to General Information.

- Remove steering column switch module.

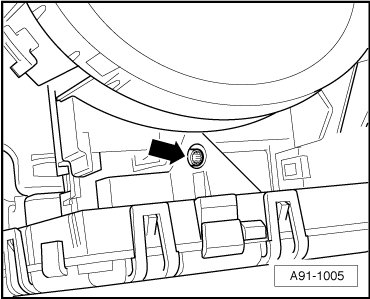

- Remove bolt - arrow - (2 Nm) below spiral spring.





The steering column electronic systems control module is secure to steering column module with two spring retainers.

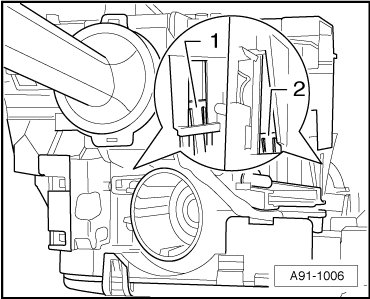

- Release springs - 1 - and - 2 - with a small screwdriver.





- Remove steering column electronic systems control module downward from steering column module.

Installing

- Follow the safety precautions for airbag systems. Refer to General Information.

- Install in reverse order.

- Make sure that all connections have engaged and lines lie in proper guides.
