Final Drive, Differential (02EA (S-Tronic) Transmission)

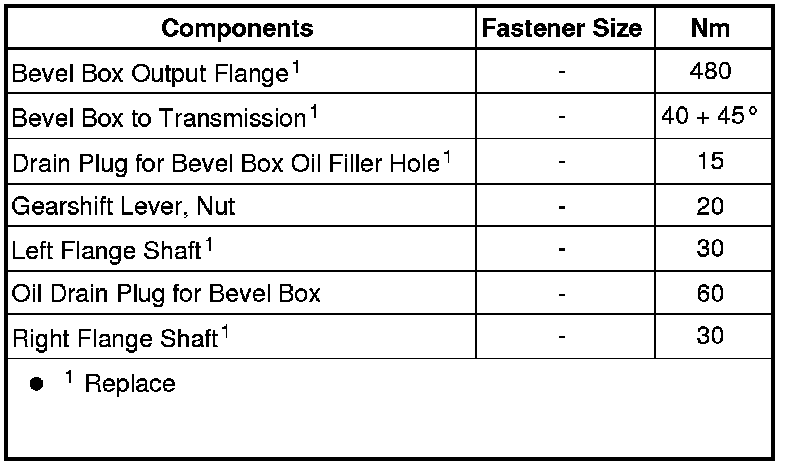

Fastener Tightening Specifications

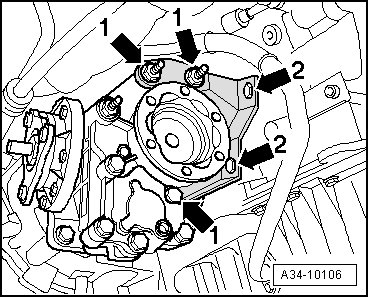

Bevel Box Bracket for Vehicles with 2.0L TFSI - Tightening Specification and Sequence






- Tighten bolts in 3 stages as follows:

1. Install and tighten the bolts - 1 - hand-tight.

2. Tighten the bolts - 2 - to 40 Nm.

3. Tighten the bolts - 1 - to 40 Nm.

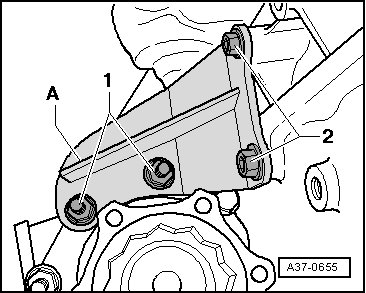

Bevel Box Bracket - A - for Vehicles with 3.2L MPI - Tightening Specification and Sequence






- Tighten bolts in 4 stages as follows:

1. Install bolts - 1 - and - 2 - hand tight.

2. Tighten bolts - 1 - to 3 Nm.

3. Tighten the bolts - 2 - to 35 Nm.

4. Tighten the bolts - 1 - to 45 Nm.

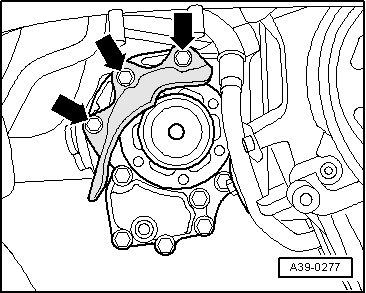

Right Drive Axle Heat Shield for Vehicles with 2.0L TFSI Engine - Tightening Specification






- Tighten the bolts - arrows - to 25 Nm.

Right Drive Axle Heat Shield for Vehicles with 3.2L MPI - Tightening Specification






- Tighten the bolts - arrows - to 25 Nm.
