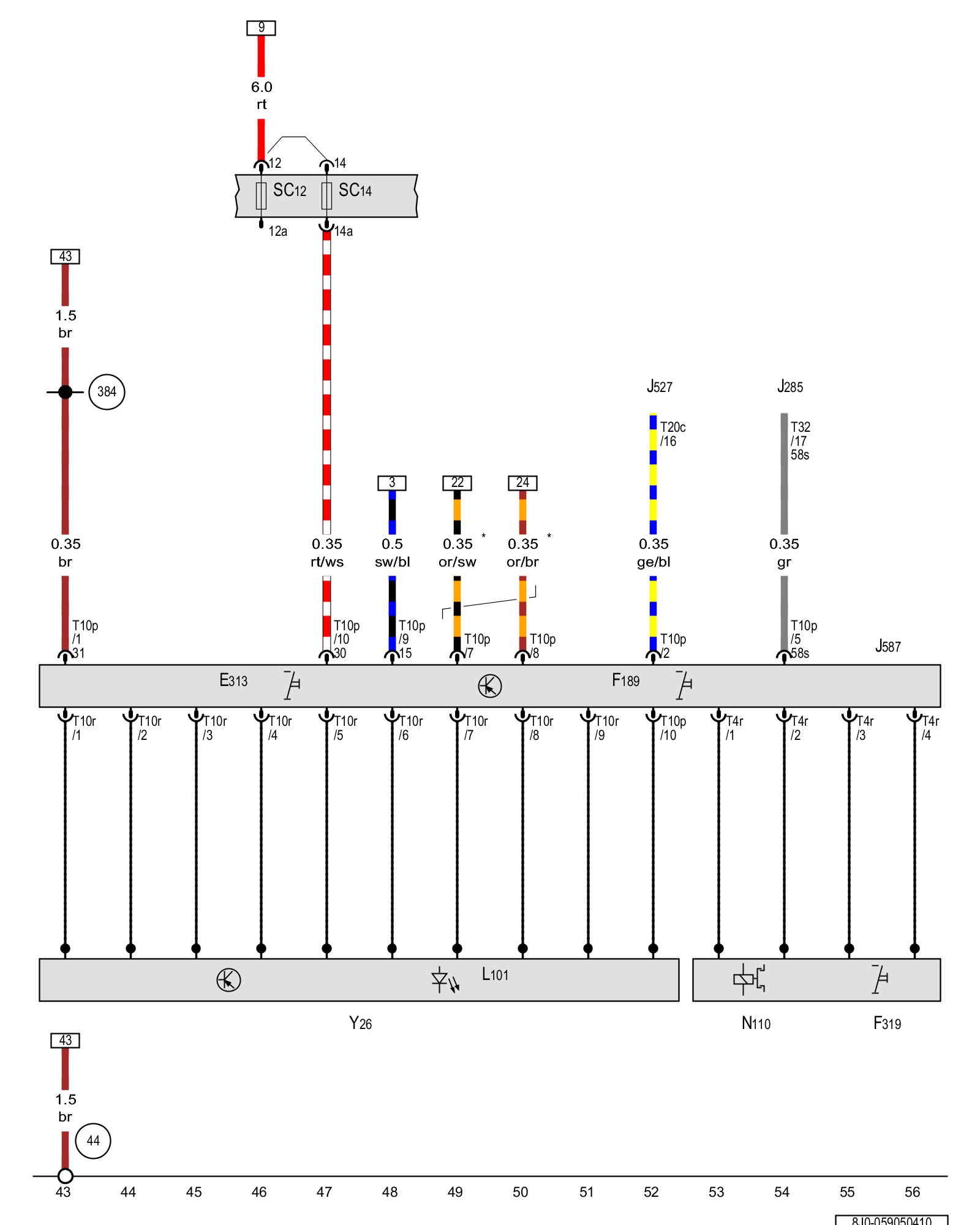

Diagram 59/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Selector lever sensor system control module, Shift lock solenoid





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E313 - Selector lever

F189 - tiptronic switch Locations

F319 - Selector lever park position lock switch Locations

J285 - Instrument cluster control module Component Locations

J527 - Steering column electronics control module Component Locations

J587 - Selector lever sensor system control module Locations

L101 - Selector lever scale illumination bulb

N110 - Shift lock solenoid Locations

SC12 - Fuse 12 (on fuse panel C)

SC14 - Fuse 14 (on fuse panel C)

T4r - 4-pin connector

T10p - 10-pin connector

T10r - 10-pin connector

T20c - 20-pin connector

T32 - 32-pin connector

Y26 - Selector lever transmission range position display unit

(44) - Ground connection on A-pillar, lower left Locations

(384) - Ground connection 19 (in main wiring harness)

* - Data bus wire (CAN bus)

Previous Diagram 59/4 (Tracks 29-42)
