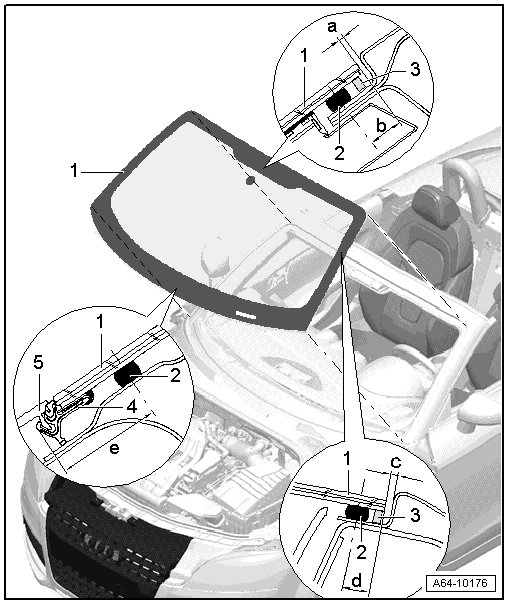

Windshield Assembly Overview - Roadster

Windshield Assembly Overview - Roadster






1 Windshield

• Distance to roof dimension - a - = 2 mm.

• Even out side distance dimension - c - = 3 mm.

2 Adhesive sealing material

3 Spacer

• Bond the same number in the same positions as on the removed window.

4 Plenum chamber cover molding

• No replacement part

• With a new window, protective piping must first be removed before installing plenum chamber cover.

5 Plenum chamber cover

• Press into retaining strip only after window adhesive curing time is complete (3 hours).
