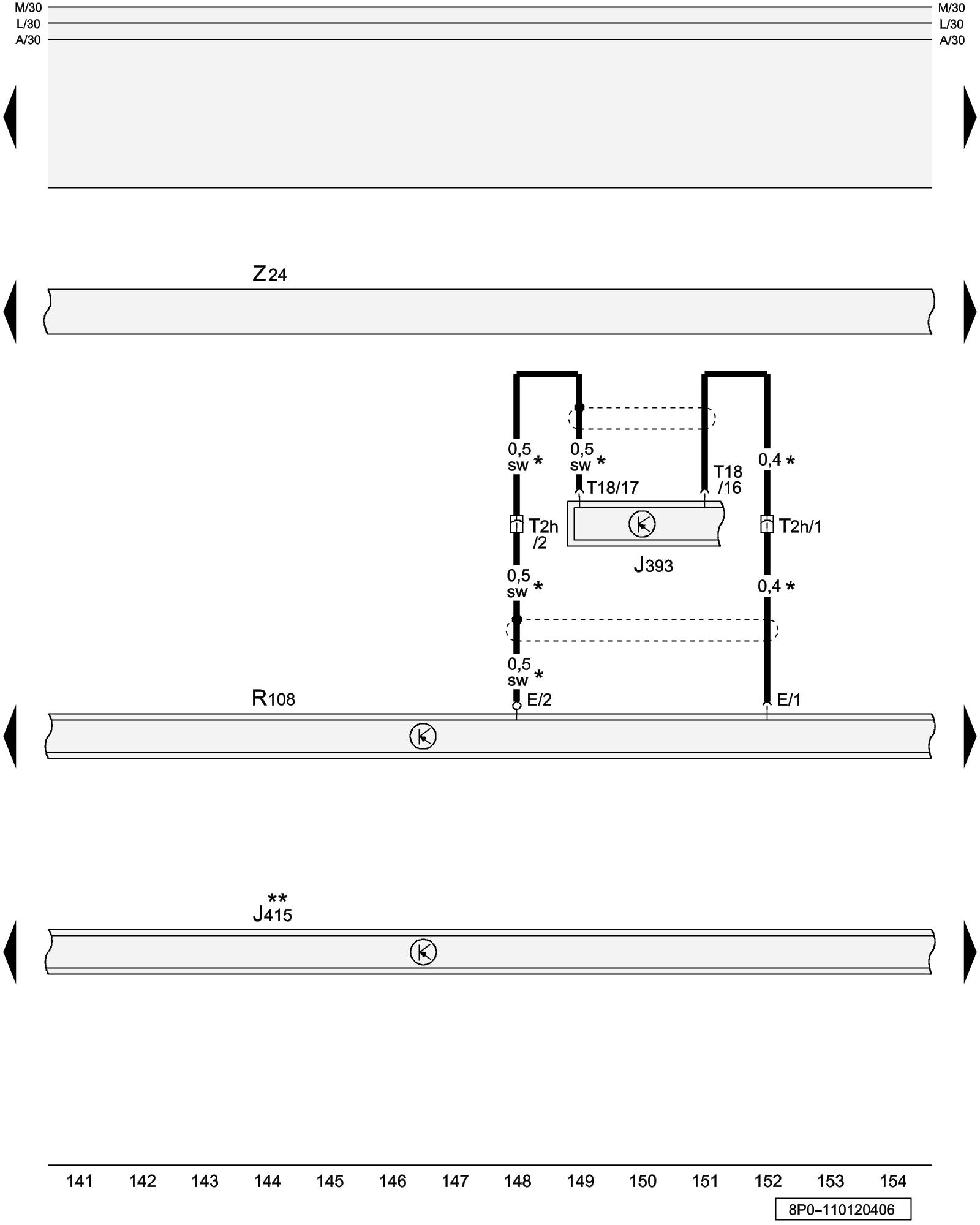

Diagram 162/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Comfort System Central Control Module, Left Antenna Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Overview Of Control Modules

J415 - Navigation/TV Tuner Overview Of Control Modules

R108 - Left Antenna Module Locations

T2h - Double Connector, on C-pillar, right

T18 - 18-Pin Connector, brown (Connector A)

Z24 - Rear Window Defogger with Window Antenna Locations

* - Only models with central locking system or anti-theft alarm system

** - Only models with TV Tuner
