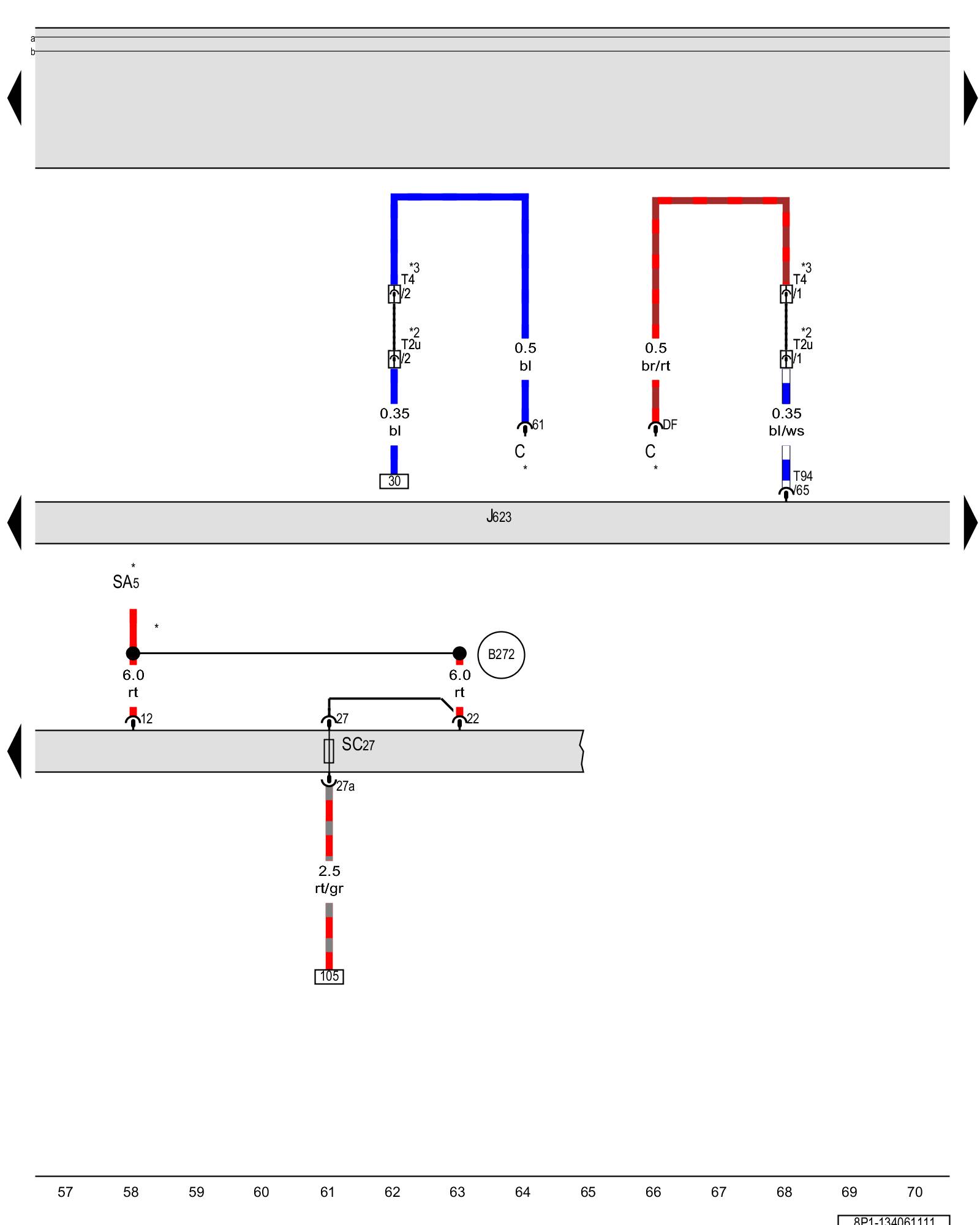

Diagram 134/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator

J623 - Engine control module Control Modules in Front Part Of Vehicle

SA5 - Fuse 5 (on fuse panel A) Overview Of Fuses

SC27 - Fuse 27 (on fuse panel C) Overview Of Fuses

T2u - Double connector, in the engine compartment, left

T4 - 4-pin connector, in the engine compartment, left

T94 - 94-pin connector

(B272) - Positive connection (30) (in main wiring harness)

* - Refer to applicable wiring diagram for battery in engine compartment

*2 - Only for vehicles without an A/C system

*3 - Only for vehicles with A/C system
