Audi
>>
2012
>>
A3 (8PA) L4-2.0L DSL Turbo (CBEA)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Position Of Fuses On Fuse Panel
Position Of Fuses On Fuse Panel
Fuses

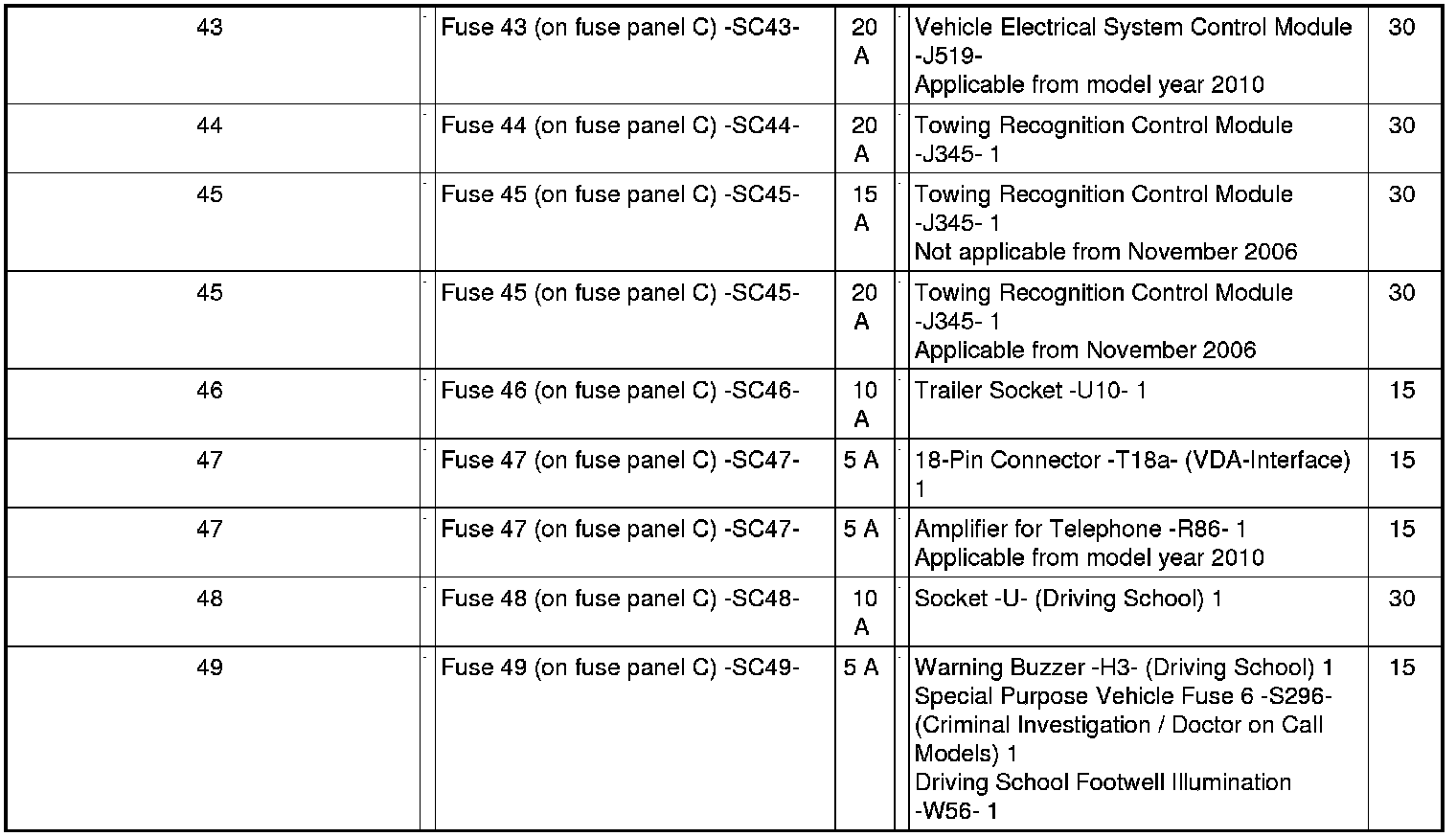

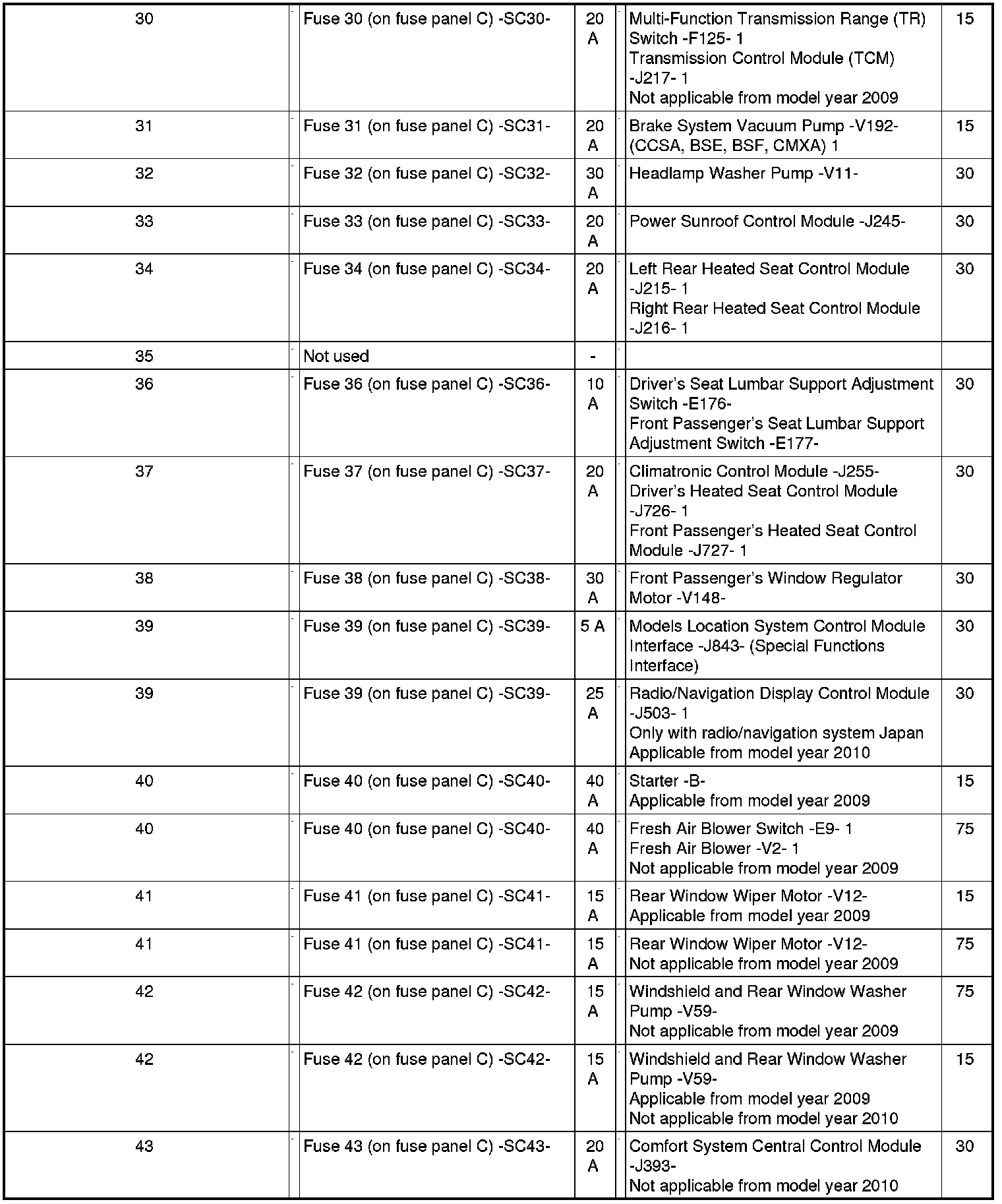

Position of fuses on fuse panel
