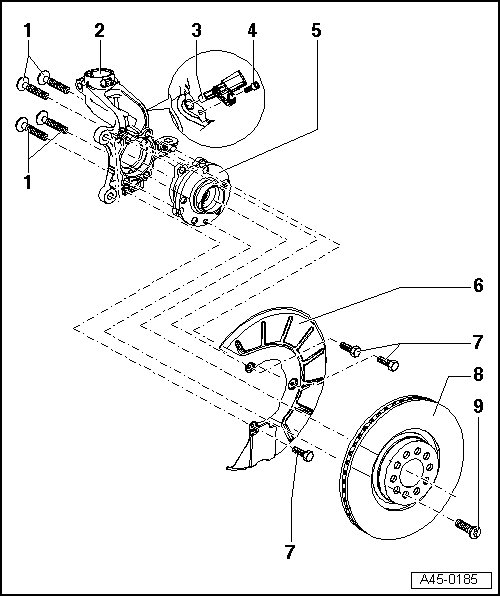

Anti-Lock Brake/Electronic Stabilization Program System at Front Axle Overview
Anti-Lock Brake/Electronic Stabilization Program System at Front Axle Overview
1 - Cap Bolt
2 - Wheel Bearing Housing
3 - Wheel Speed Sensor
• Removing and installing, refer to => [ Speed Sensor at Front Axle ] Speed Sensor at Front Axle
• Before inserting sensor, clean inner surface of hole and coat with grease G 000 650
4 - Hex Socket Head Bolt
• 8 Nm
5 - Wheel Bearing Unit
6 - Cover Plate
7 - Bolt
• Tightening specification - 1 - => [ Bolt ] Brakes, FS III Overview
8 - Brake Disc
• Allocation, refer to => [ Brakes ] Brakes
9 - Bolt
• Tightening specification - 3 - => [ Bolt ] Brakes, FS III Overview and - 3 - => [ Bolt ] Brakes, FN 3 Overview
