Model Year 2007-Up







Control Modules in Interior of Vehicle

Data Bus On Board Diagnostic Interface -J533-

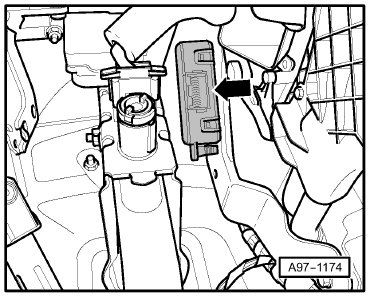

Component Location:







In left footwell -Arrow-

Note:
• The Component Location fromData Bus On Board Diagnostic Interface -J533- are equal for right and left-hand drive.

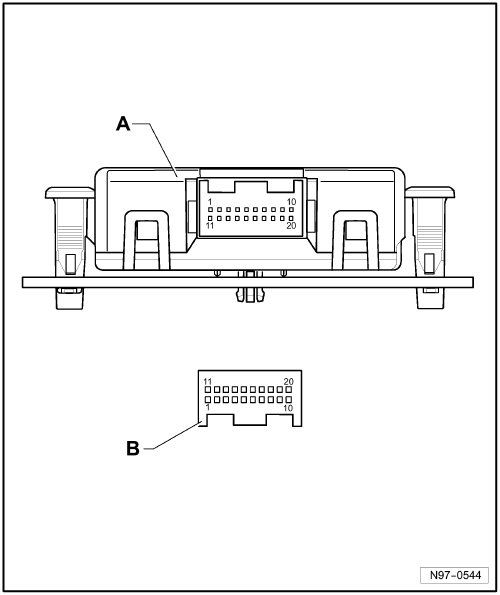

Pin Arrangements:







A - Data Bus On Board Diagnostic Interface -J533-
Connector:

B - 20-Pin Connector -T20d-
