Air Injection: Service and Repair

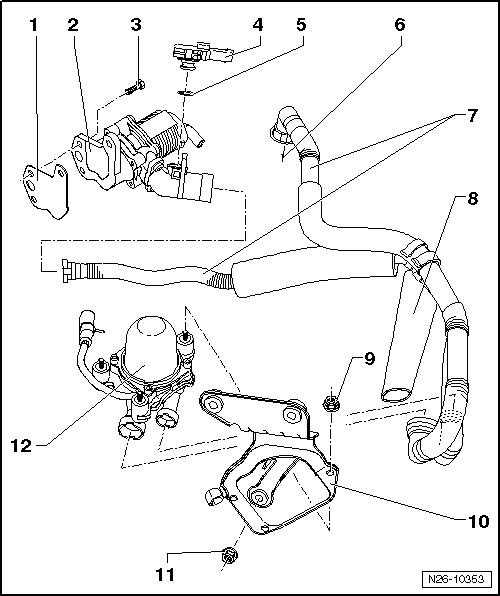

Secondary Air Injection System Overview

1 Seal

• Replace

2 Secondary Air Injection (AIR) Solenoid Valve (N112)

• Removing and installing, refer to => [ Secondary Air Injection Solenoid Valve (N112) ] Service and Repair

3 Bolt

• 9 Nm

4 AIR Sensor 1 (G609)

5 Seal

• Replace

6 To Air Filter

7 Secondary Air Lines

8 Routing Aid for the Air Filter Drain Line

9 Nut

• 9 Nm

10 Bracket for the AIR Pump Motor (V101)

11 Nut

• 25 Nm

12 AIR Pump Motor (V101)

• Removing and installing, refer to => [ Secondary Air Injection Pump Motor (V101) ] Service and Repair
