Front Parking Aid Sensors, Allroad

Front Parking Aid Sensors, allroad

Removing






Outer sensor

- Remove the front wheel housing liner.

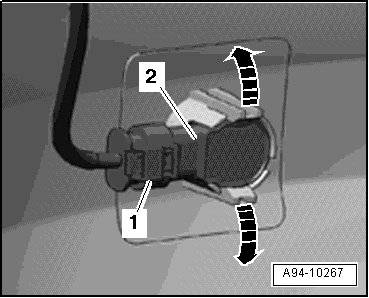

- Press both retainer tabs to the side - arrows - and press the sensor - 2 - through from the outside towards the inside.

- Disconnect the connector - 1 - from the sensor.

Inner sensor






- Remove the air intake grille.

- Reach through the opening for the air intake grille and press both retaining tabs to the side - arrows - while pressing the sensor - 2 - through from the outside to the inside.

- Disconnect the connector - 1 - from the sensor.

Installing

Install in reverse order of removal. Note the following:

Outer sensors

- Install the front wheel housing liner.

Inner sensor

- Install the air intake grille.
