Lock Carrier Cover

Lock Carrier Cover

Removing

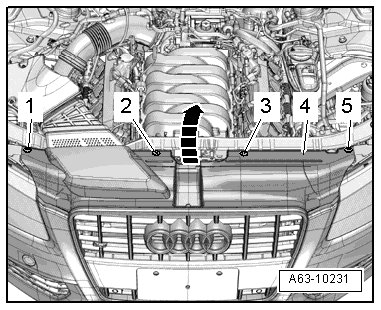

Version I:

- Remove the expanding clip bolts - 1, 2, 3 and 5 -.

- Lift the lock carrier cover - 4 - - arrow - and disengage it from the radiator grille.

Version II:






- Remove the expanding clip - 2 -.

- To remove the expanding clip, press in clamping pin - 1 - carefully by dimension - x - until it audibly engages in the expanding clip - arrow -.

• Dimension - x - = 5 mm

- Remove the released expanding clip with a clamping pin.

Installing

• Tightening specifications, refer to => [ Lock carrier cover - tightening specification
and sequence ] Bumper Cover Assembly Overview.

Install in reverse order of removal. Note the following:

- Install the lock carrier cover with the guides in the mounts on the radiator grille and the bumper cover.
