Window Regulator

Window Regulator

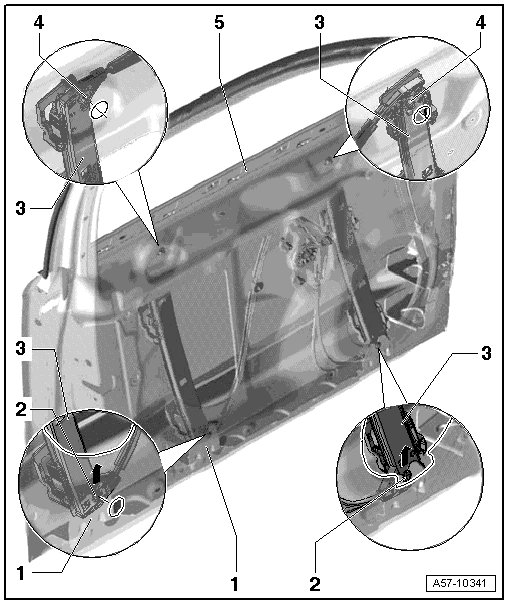

1 Lower window regulator mount

2 Bolt

• Loosen only for removing the window.

3 Window Regulator

• Removing

• The door trim panel is removed.

• Window regulator motor removed. Refer to => [ Window Regulator Motor ] Window Regulator Motor.

• Door glass removed. Refer to => [ Front Door Window Assembly Overview ] Front Door Window Assembly Overview

• The door inner panel cover is removed. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover

- Release the window regulator motor threaded pins and push it through the inside panel.

- Only loosen the upper nut.

- Remove the lower nut and lift the window regulator upward and out of the door.

4 Nut

• Remove for removing the window regulator.

5 Door

- Remove the door trim panel.

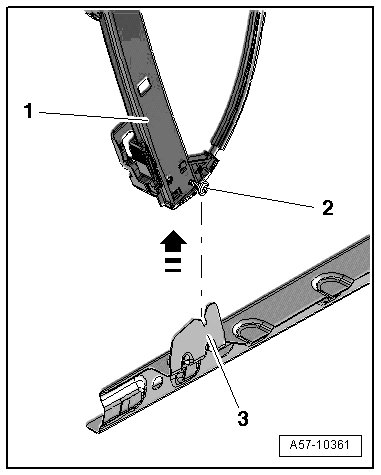

Lower window regulator mount






- Remove the lower screw - 2 - and remove the window regulator - 1 - out of the bracket - 3 - in direction of arrow.

Removing






- Window regulator motor, removing, Refer to => [ Window Regulator Motor ] Window Regulator Motor.

- Remove the door window. Refer to => [ Front Door Window ] Front Door Window.

- Remove the bass speaker.

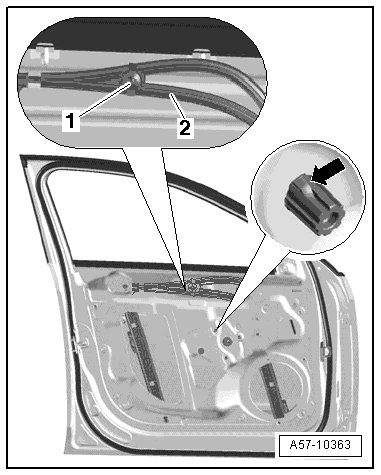

- Release the threaded pins clips - arrow - for the window regulator with an 11 mm socket by mounting the socket onto the threaded pins.

- Remove the clip - 1 - for the cable - 2 - from the inner side of the cable guide - 1 -.

- Remove the sealing plugs - 1, 3 and 6 -.






- Remove the upper nuts - 2 -.

- Move the lower screws - 5 - on the window regulator cable guide.

- Remove the window regulator - 4 - upward and out of the door.

Installing






• Tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview.

Install in reverse order of removal. Note the following:

• The threaded pin clips - arrow - for the window regulator must lock into the inner door panel.

- Install the bass speaker.

- Install the door window. Refer to => [ Front Door Window ] Front Door Window.

- Install the window regulator motor. Refer to => [ Window Regulator Motor ] Window Regulator Motor.
