Rear B-Pillar and C-Pillar Trim

Rear B-Pillar and C-Pillar Trim

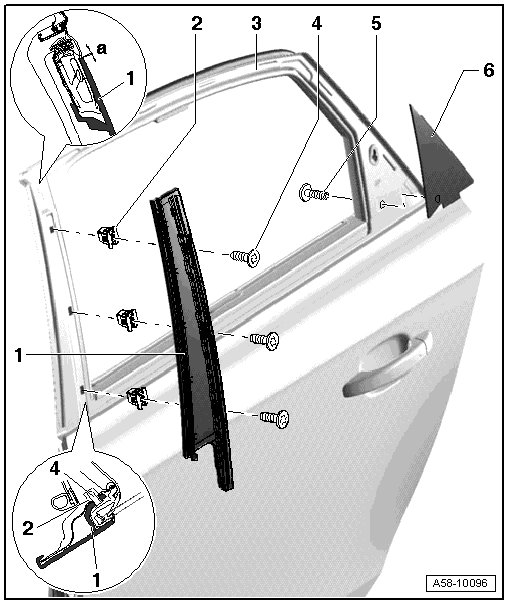

1 B-pillar trim

- Remove the door window. Refer to => [ Rear Door Window ] Rear Door Window.

- Remove the window frame trim.

- Remove B-pillar trim.

- Disengage the window guide near the B-pillar from the trim and remove it.

- Remove the screws - 4 - and remove the trim from the door.

- When installing the window guide into the trim, coat the guide with a soapy solution.

2 Clips

3 Door

4 Bolt

• 2.5 Nm

5 Bolt

• 2.5 Nm

6 C-pillar trim

- Loosen the window frame trim near the C-pillar.

- Remove the screw, push the trim downward and remove it to the side.
