Headrest and Headrest Guide Overview

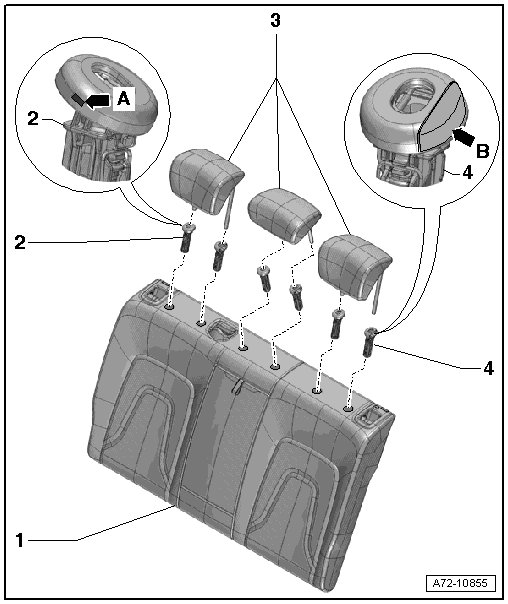

Headrest and Headrest Guide Overview






1 Foldable Backrest

2 Headrest Guide

• With securing spring - arrow A -

• Always installed on the right

• Removing and installing, refer to => [ Headrest Guide ] Headrest Guide

3 Head Restraint

• Removing and installing, refer to => [ Headrest ] Headrest

4 Headrest Guide

• With headrest height adjustment button - arrow B -

• Always installed on the left

• Removing and installing, refer to => [ Headrest Guide ] Headrest Guide
