Backrest Cover and Padding, Separating and Connecting

Backrest Cover and Padding, Separating and Connecting

• The work description is based on a manual or power standard or sport front seat and comfort seat.

Special tools, testers and auxiliary items required

• Upholstery Clip Pliers (V.A.G 1634)

Removing






- Remove the cover and upholstery from the backrest. refer to => [ Backrest Cover and Padding ] Backrest Cover and Padding.

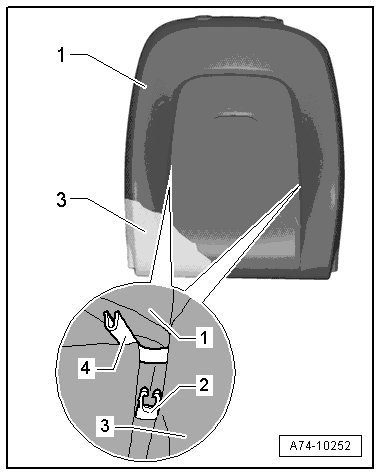

- Remove the cover - 1 - from the upholstery - 3 - as far as possible.

- Unclip retaining channel - 4 - from clips - 2 -.

- Remove cover from cushion.

Versions with fabric covers:






- Remove contour wire - 3 - that is inserted into pocket - 2 - in cover - 1 - from clips - 4 -.

- Remove the cover from the cushion - 5 -.

Versions with leather covers:






- Cut through the upholstery clips - 3 - using pliers - 4 -.

- Remove the cover - 1 - from cushion - 2 -.

Installing

Install in reverse order of removal. Note the following:

- When installing new upholstery clips with leather covers, use (V.A.G 1634).
