Backrest With Cover or Storage Compartment

Backrest with Cover or Storage Compartment

Removing

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

- Remove the rear seat backrest. Refer to => [ Divided Backrest ] Divided Backrest.

- Remove the headrests. Refer to => [ Headrest ] Headrest.

Split backrest right 2/3 with storage compartment or cover:

- Remove center armrest. Refer to=> [ Center Armrest, Split Backrest ] Center Armrest, Split Backrest.

- Remove the rear center belt guide. Refer to => [ Center Rear Belt Guide, with Foldable Rear Seat Backrest ] Center Rear Belt Guide, With Foldable Rear Seat Backrest.

- Remove the storage compartment (backrest cover with lock) or backrest cover. Refer to:

• => [ Lockable Armrest Storage Compartment ] Lockable Armrest Storage Compartment.

• => [ Backrest Trim ] Backrest Trim.

• => [ Backrest Cover ] Backrest Cover.

Continuation for left and right rear seat backrest:






- Remove the retainer trim. Refer to => [ Lock Trim, with Lock Cylinder ] Lock Trim, With Lock Cylinder.

- Remove headrest guides. Refer to => [ Headrest Guide ] Headrest Guide.

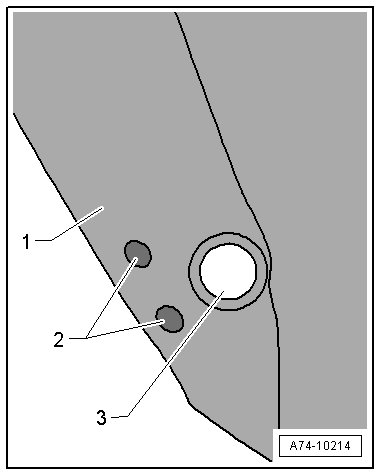

- Unclip the plugs - 2 -.

1 Cover
2 Plugs
3 Inner bracket

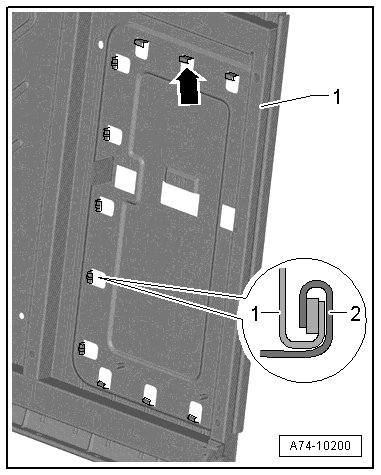

- Pry the upper retaining channel - 1 - out of the backrest shell - 3 -.






- Remove the molding - 2 - from the sides and bottom of the backrest shell.

Split backrest right 2/3 with storage compartment or cover:






- Pry the molding - 2 - out of the tabs - arrow - on the backrest shell - 1 -.

Continuation for left and right rear seat backrest:

- Pry the cover over the inner bracket.

- Pry the cover over the outer bracket.

- Guide the release cable with the connector station through the slit in the cover.

- Remove the cover with upholstery from the backrest shell.

- Remove the upper and lower upholstery from the backrest shell.

Installing






Install in reverse order of removal. Note the following:

- Install headrest guide with button at left.

- Make sure the button - 2 - moves easily after installing the trim - 1 -.
