Trim

Trim

Removing






- Remove the headrests. Refer to => [ Headrest ] Headrest.

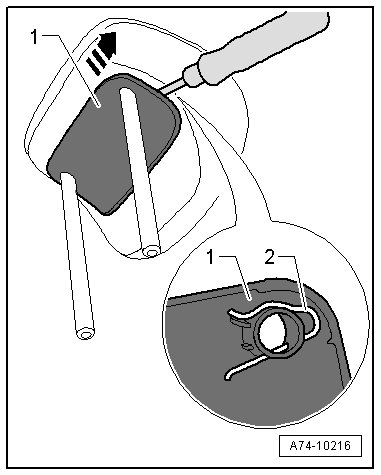

- Press the sides of the upholstery away from the trim - 1 - in the direction of the - arrow -.

- Bend the leg spring - 2 - up slightly using a wide screwdriver.

- Pull the trim up at one side at the same time until it disengages on one side.

- Perform the same step on the other side.

- Remove the trim while bending the leg spring up.

Installing

Install in reverse order of removal.
