Radio Connectors







Radio Connectors

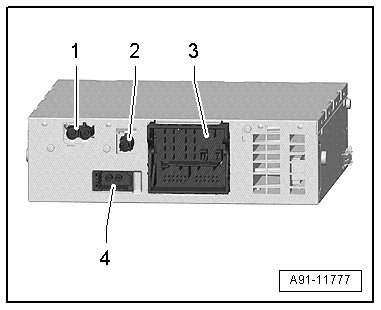

Radio (R)





1. (AM/FM1/FM2) antenna jack

2. Radio, telephone, navigation system antenna (R52) SAT connection ( satellite antenna (R172) )

3. Connection Block with Four Connectors

4. MOST bus


Unlisted connector terminals are not used.

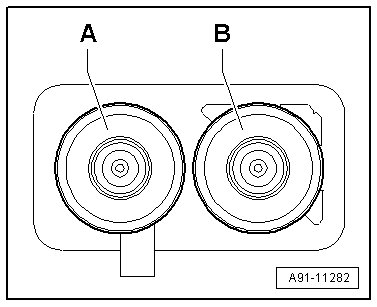

1 - AM/FM1/FM2 antenna connection





Sedan

A Chamber 2 (AM/FM1) antenna amplifier 3 (R112) ( radio antenna 2 (R93) )
B FM2 connector 1 from antenna amplifier 3 (R112) ( antenna (R11) )

Avant

A Chamber 2 (AM/FM1) antenna amplifier 3 (R112) ( radio antenna 2 (R93) )
B Chamber 1 (FM2) antenna amplifier (R24) ( antenna (R11) )

3 - Connection Block With Four Connectors

A - 8-Pin Multi-Pin Connector (T8ag)





1. Right rear speaker (+)

2. Right front speaker (+)

3. Left front speaker (+)

4. Left rear speaker (+)

5. Right rear speaker (-)

6. Right front speaker (-)

7. Left front speaker (-)

8. Left rear speaker (-)


B - 12-Pin Connector (T12w)





17 Left LF-In
18 LF-In ground
19 LF-In diag
21 LF diag
22 LF (-) from setup for cell phone package
23 Right LF-In
24 LF-In ground shielding
27 LF ground shielding
28 LF (+) from setup for cell phone package

C - 12-Pin Connector





29 Headphones output 1 diag
31 Headphones output 1/2 diag
34 Headphones output 2 diag
35 Headphones output 1 left
36 Headphones output 1 ground
37 Headphones output 1 right
38 Headphones output 2 left
39 Headphones output 2 ground
40 Headphones output 1 right

D - 10-Pin Connector (T10ag)





9 Subwoofer in the rear shelf (R157)
10 Center Mid/High Range Loudspeaker (R158)
11 Ring-break diagnostic cable
13 Subwoofer in the rear shelf (R157)
14 Center Mid/High Range Loudspeaker (R158)
41 Terminal 31
42 Terminal 30

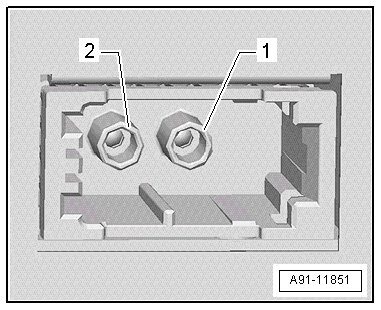

4 - MOST Bus





1. IN

2. OUT
