Rearview Camera System Control Module (J772) Connectors

Rearview Camera System Control Module (J772) Connectors

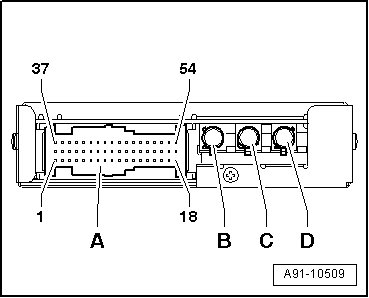

Rearview Camera System Control Module (J772)





A 54-pin connector (T54b)
B TV Tuner (R78) FBAS Input (through 10.31.2008)
B FBAS input not assigned, from 11.03.2008
C FBAS output to front information display control head control module / information electronics control module 1 (J794)
D FBAS input from Rear View Camera (R189)

• Unlisted connector terminals are not used.

A - 54-Pin Connector (T54b)





39 CAN bus Low (Comfort)
40 CAN bus High (Comfort)
43 Terminal 30
44 Terminal 31
47 Terminal 31 to Rear View Camera (R189)
48 Voltage supply Rear View Camera (R189)
