Diagram 113/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

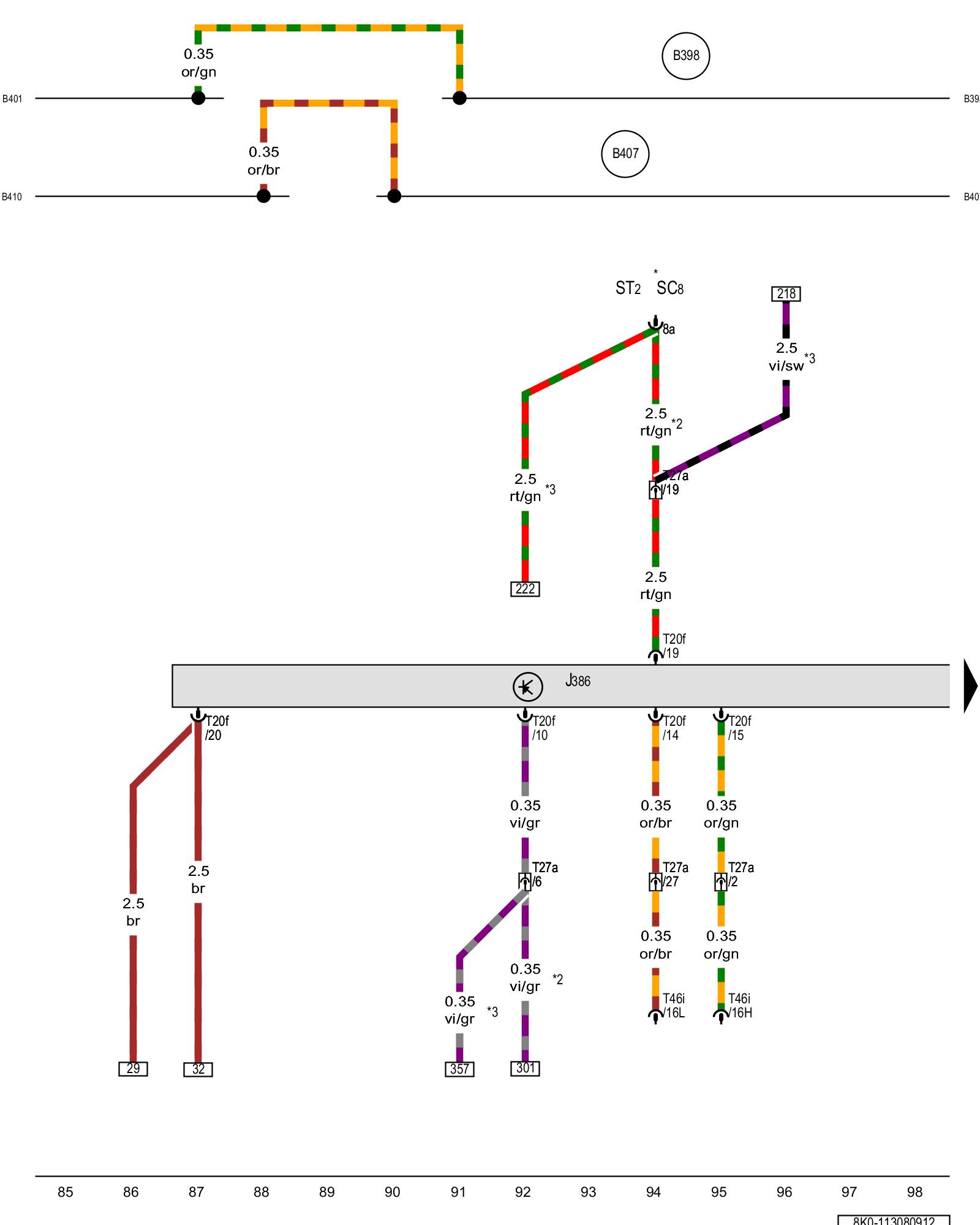

Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J386 - Driver door control module Overview of Control Modules in Interior of Vehicle

ST2 - Fuse panel 2

SC8 - Fuse 8 (on fuse panel C) Overview Of Fuses

T20f - 20-pin connector Driver's Door Control Module -J386-

T27a - 27-pin connector, Left A-pillar, bottom

T46i - 46-pin connector Overview Of Connector Stations

(B398) - Comfort system CAN bus high connection 2 (in main wiring harness)

(B401) - Comfort system CAN bus high connection 5 (in main wiring harness)

(B407) - Comfort system CAN bus low connection 2 (in main wiring harness)

(B410) - Comfort system CAN bus low connection 5 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Only for left-hand drive vehicles

*3 - Only for right-hand drive vehicles

Previous Diagram 113/7 (Tracks 71-84)

Next Diagram 113/9 (Tracks 99-112)
