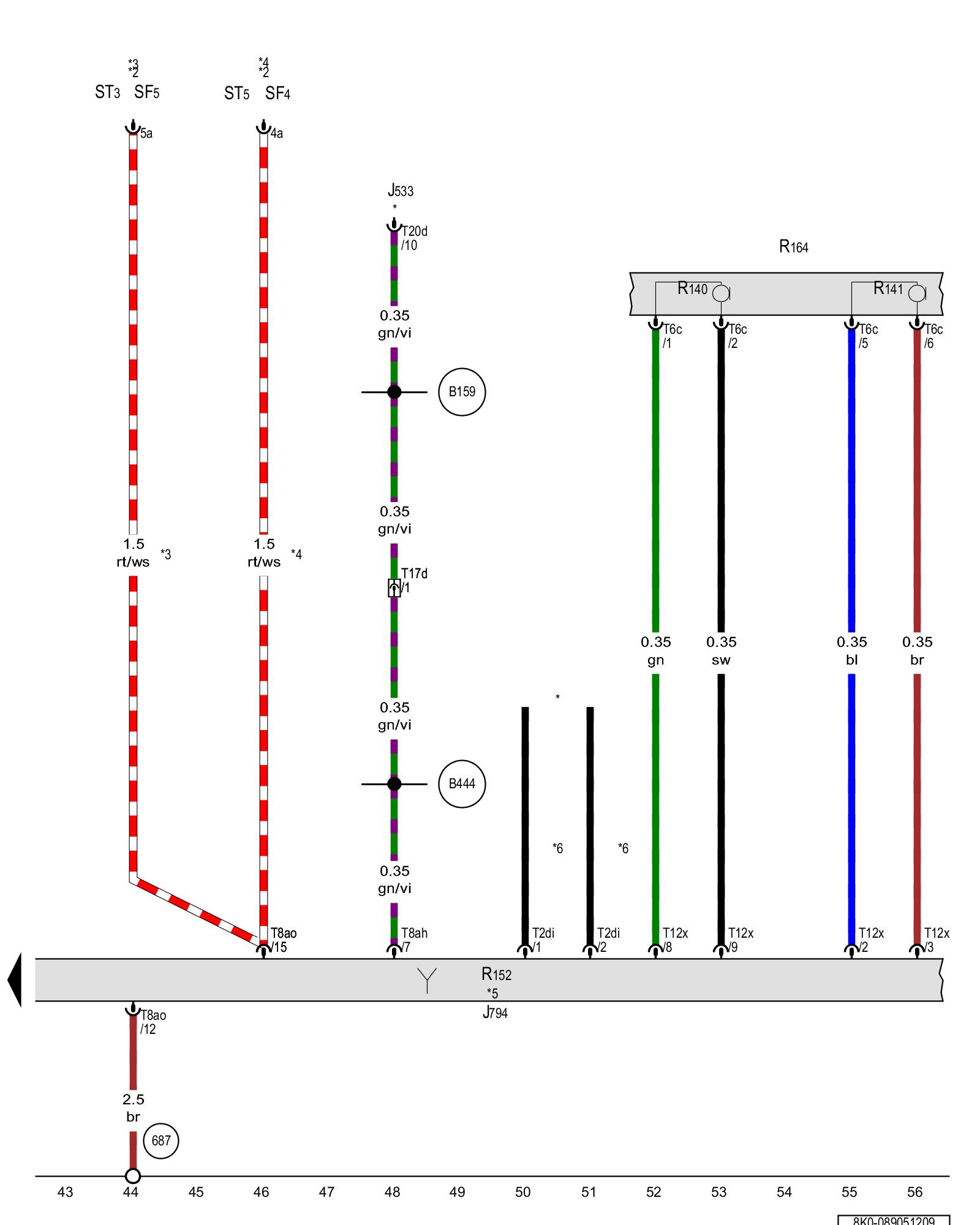

Diagram 89/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface, Information electronics control module 1, Bluetooth antenna, Microphone unit in front roof module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Overview of Control Modules in Interior of Vehicle

J794 - Information electronics control module 1 Overview of Control Modules in Interior of Vehicle

R140 - Left front microphone

R141 - Right front microphone

R152 - Bluetooth antenna Locations

R164 - Microphone unit in front roof module Radio Component Locations

ST3 - Fuse panel 3

SF4 - Fuse 4 (on fuse panel F) Overview Of Fuses

ST5 - Fuse panel 5

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

T2di - Double connector Locations

T6c - 6-pin connector

T8ah - 8-pin connector Locations

T8ao - 8-pin connector Locations

T12x - 12-pin connector

T17d - 17-pin connector, brown Overview Of Connector Stations

T20d - 20-pin connector Locations

(687) - Ground connection 1 on center tunnel Overview of Ground Connections (4-door Models (Sedan))

(B159) - Diagnostic connection (in interior wiring harness)

(B444) - OBD connection 1 (in main wiring harness)

* - Refer to applicable wiring diagram

*2 - Refer to applicable wiring diagram for fuse positions

*3 - Through April 2009

*4 - From May 2009

*5 - Only for vehicles with Bluetooth

*6 - Fiber optic cable
