Diagram 39/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

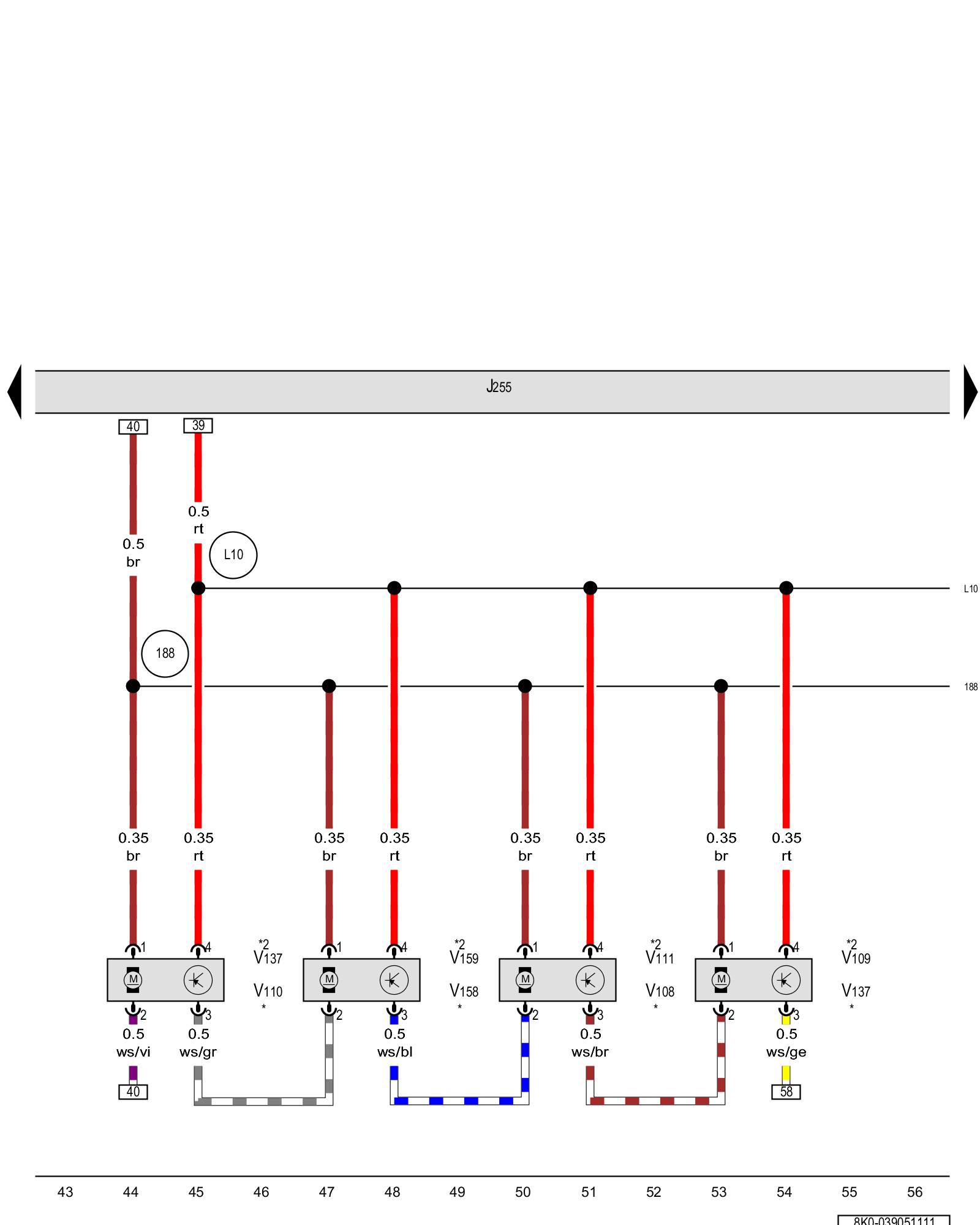

Left footwell door motor, Left temperature door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J255 - Climatronic control module Overview of Control Modules in Interior of Vehicle

V108 - Left footwell door motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V109 - Right footwell door motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V110 - Left center vent motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V111 - Right center vent motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V137 - Rear temperature door motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V158 - Left temperature door motor A/C Unit and Air Intake Housing Components, Comfort A/C System

V159 - Right temperature door motor A/C Unit and Air Intake Housing Components, Comfort A/C System

(188) - Ground connection 3 (in A/C wiring harness)

(L10) - Connection 2 (in A/C system wiring harness)

* - Only for right-hand drive vehicles

*2 - Only for left-hand drive vehicles

Previous Diagram 39/4 (Tracks 29-42)

Next Diagram 39/6 (Tracks 57-70)
