Button Unit, With MMI Comfort Equipment

Button Unit, with MMI Comfort Equipment

Removing






- Remove the CD changer.

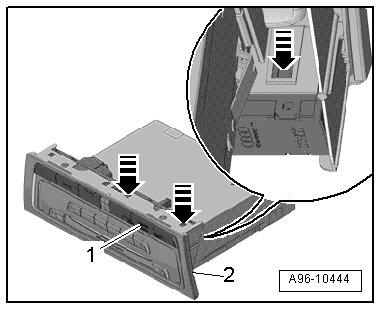

- Carefully release the retaining hooks - arrows - using a small screwdriver.

- Press the button unit - 1 - out of the switch mount - 2 -.

Installing

Install in reverse order of removal, observing the following:

- Press the button unit into the switch housing until the retainer engages audibly.

- Install the CD changer.
