Special Tools

Special tools, testers and auxiliary items required

• Hazet Oil Filter Wrench (2171-1) or an Oil Filter Wrench (3417)

• Ring Spanner 7-Piece Set (3337)

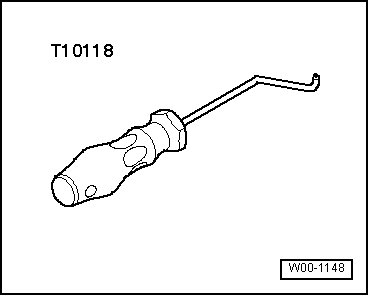

• Assembly Tool (T10118)

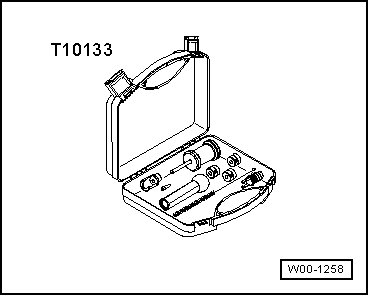

• Tool Set (T10133) with puller

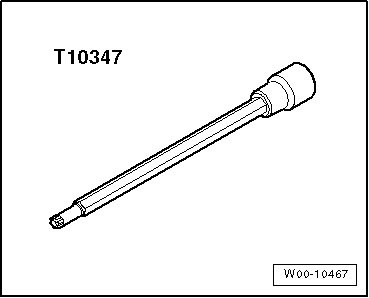

• Socket Torx(R) T30 (T10347)






• Release Tool f/ Rev. Light Switch Conn. (T40138)

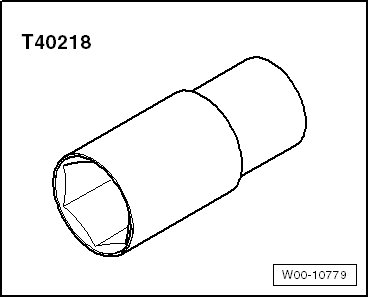

• Socket 27 mm (T40218)






• Fuel Inj. Pressure Gauge-CIS (V.A.G 1318)






• Adapter Cable (V.A.G 1598/39-1)

• Adapter Cable (V.A.G 1598/39-2)

• Test Box 105 Pin (V.A.G 1598/42)

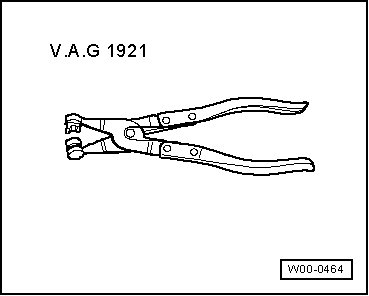

• Hose Clip Pliers (V.A.G 1921)






• Hot Air Blower (VAS 1978/14A) - item 1 - with nozzle attachment - 2 - from the Wiring Harness Repair Set (VAS 1978 B)

• Small Commercially Available Locking Pliers - 3 -






• Hand Vacuum Pump (VAS 6213)






• Not illustrated:

• Trim Removal Wedge (3409)

• Puller (T10133/2A)

• Hammer (T10133/3)

• Nylon Brush (T10133/4)

• Assembly Cone (T10133/5)

• Guide Sleeve (T10133/6)

• Calibration Sleeve (T10133/7)

• Calibration Sleeve (T10133/8)

• Removal Tool (T10133/16)

• Adapter (V.A.G 1318/11)

• Adapter (V.A.G 1318/17-1)

• Fuel Line Feed Adapter (V.A.G 1318/23)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Connector Test Set (V.A.G 1594C)

• Pressure Sensor Tester (VAS 6394)

• Pressure Sensor Tester (VAS 6394/1)

• Adapter (VAS 6394/2)

• Test Instrument Adapter/DSO (3-pin) (VAS 5570)

• Ultrasonic Cleaning Unit (VAS 6418)

• Injection Module Mounting Plate (VAS 6418/1)
