Diagram 21/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

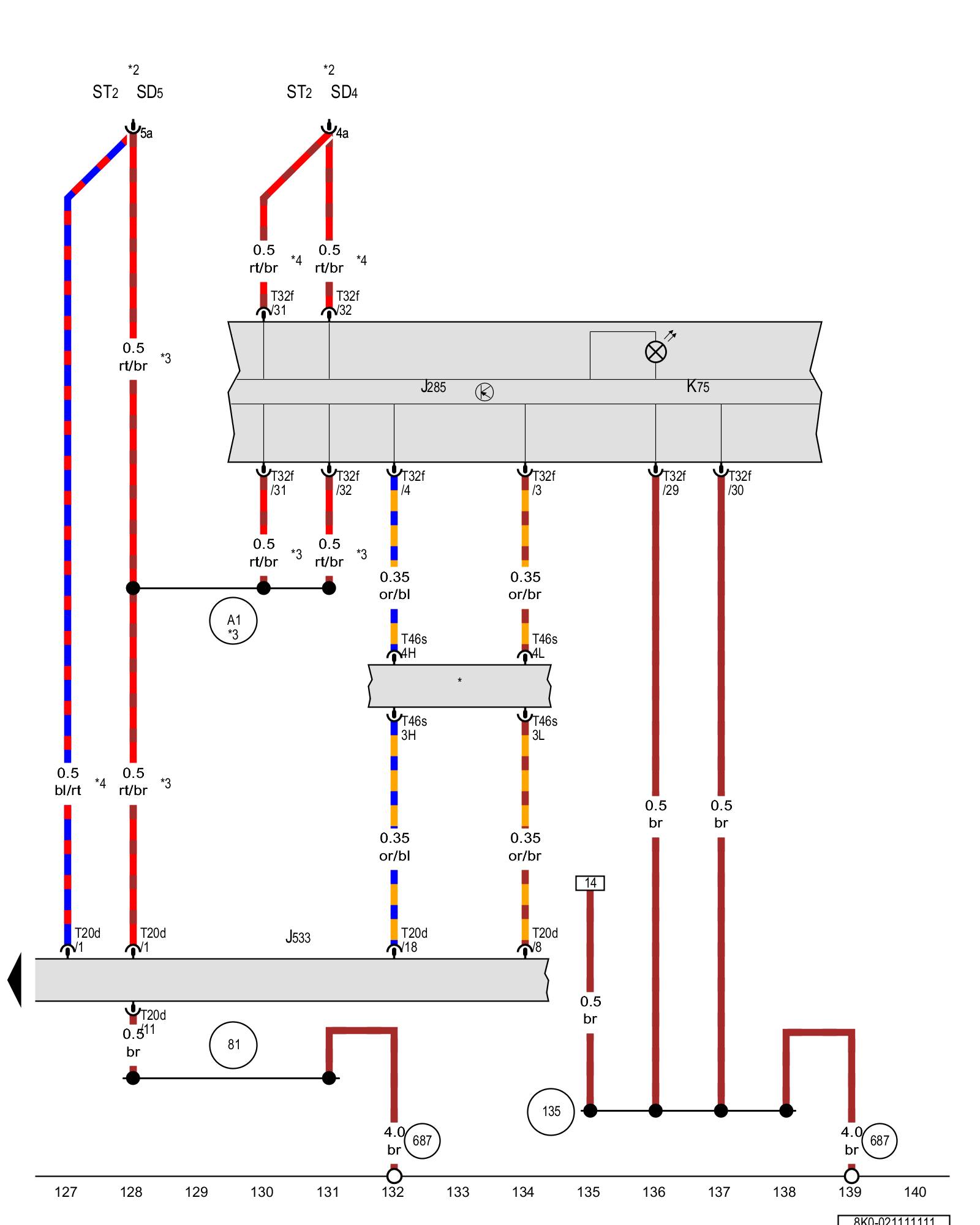

Instrument cluster control module, Data bus on board diagnostic interface, Airbag indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Overview of Control Modules in Interior of Vehicle

J533 - Data bus on board diagnostic interface Overview of Control Modules in Interior of Vehicle

K75 - Airbag indicator lamp Locations

ST2 - Fuse panel 2

SD4 - Fuse 4 (on fuse panel D) Overview Of Fuses

SD5 - Fuse 5 (on fuse panel D) Overview Of Fuses

T20d - 20-pin connector Locations

T32f - 32-pin connector Locations

T46s - 46-pin connector Overview Of Connector Stations

(81) - Ground connection 1 (in instrument panel wiring harness)

(135) - Ground connection 2 (in instrument panel wiring harness)

(687) - Ground connection 1 on center tunnel Overview of Ground Connections (4-door Models (Sedan))

(A1) - Positive connection (30a) (in instrument panel wiring harness)

* - Refer to applicable wiring diagram

*2 - Refer to applicable wiring diagram for fuse positions

*3 - Through April 2009

*4 - From May 2009

Previous Diagram 21/10 (Tracks 113-126)
