Diagram 33/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

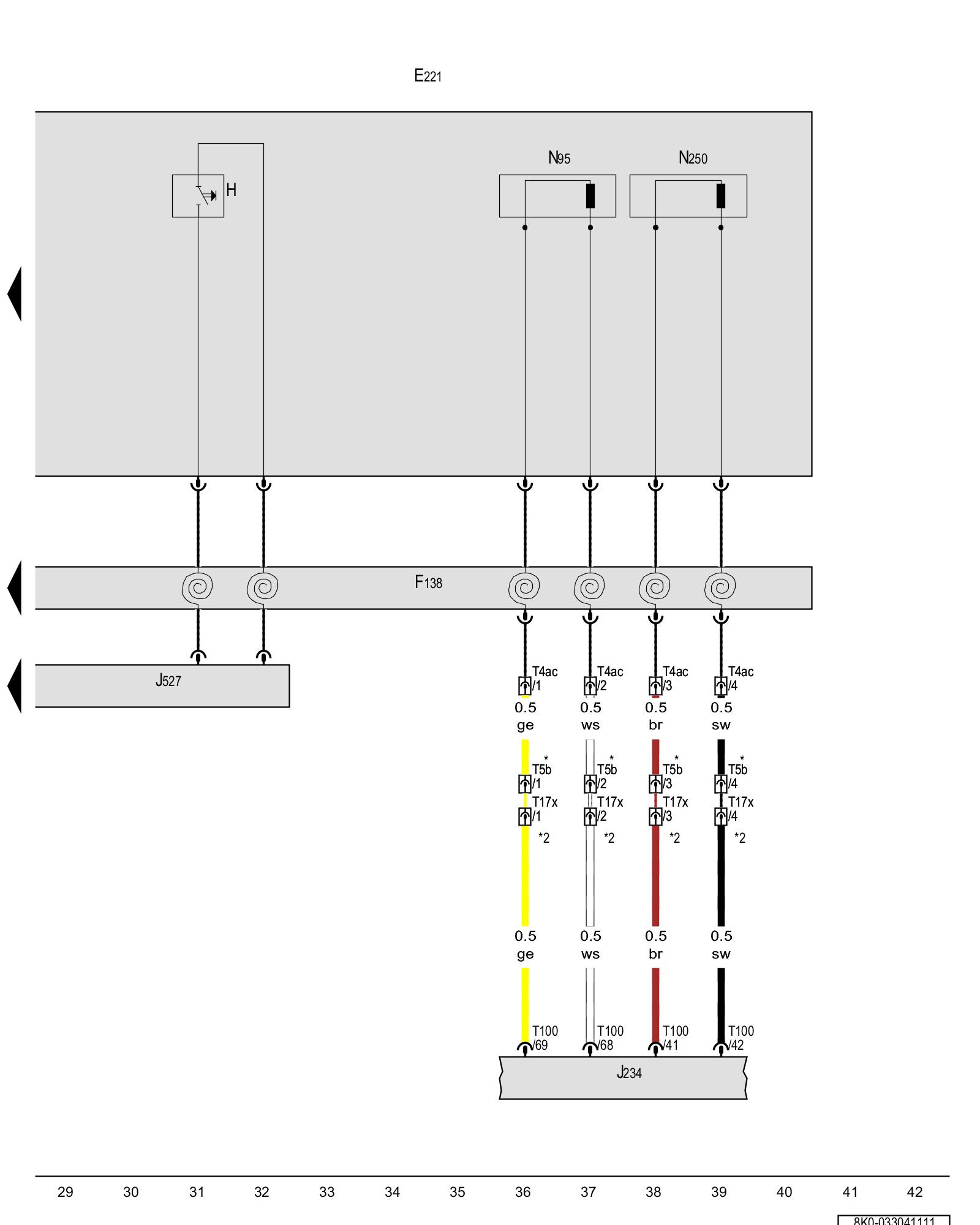

Control unit in steering wheel, Steering column electronics control module, Driver airbag igniter, Driver airbag igniter 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E221 - Control unit in steering wheel

F138 - Airbag spiral spring/return spring with slip ring Locations

H - Signal horn activation

J234 - Airbag control module Overview of Control Modules in Interior of Vehicle

J527 - Steering column electronics control module Overview of Control Modules in Interior of Vehicle

N95 - Driver airbag igniter Locations

N250 - Driver airbag igniter 2 Locations

T4ac - 4-pin connector, yellow

T5b - 5-pin connector, yellow Overview Of Connector Stations

T17x - 17-pin connector, yellow Overview Of Connector Stations

T100 - 100-pin connector Locations

* - Through April 2009

*2 - From May 2009

Previous Diagram 33/3 (Tracks 15-28)
