Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6- through October 2011

Fuses

Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6- through October 2011

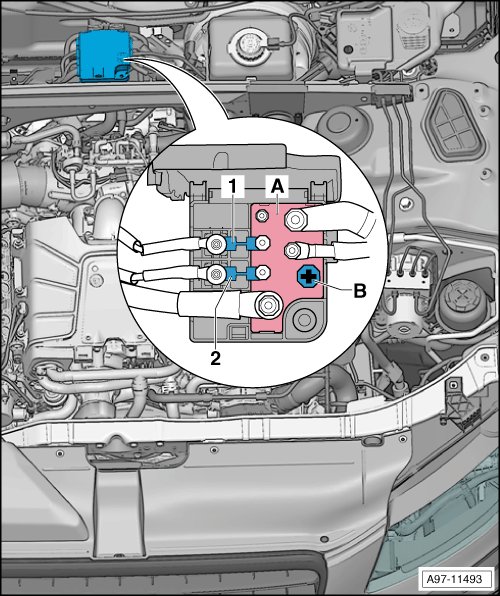

Component Location:
In engine compartment, center plenum chamber





A - Terminal 30 Wire Junction 2 -TV22-

B - Battery Jump Start Terminal -U6-

1 - Fuse 1 - terminal 30 -S204- , => [ Fuses on With ]

2 - Fuse 2 - terminal 30 -S205- , => [ Fuses on With ]



Fuses on Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6-


1) S204 (600 W) and S205 (400 W) are installed in models
with coolant fan control 1000 W.
2) S204 (400 W) and S205 (400 W) are installed in models
with coolant fan control 800 W.
