Wiper Blade, Replacing

Wiper Blade, Replacing

Removing






- Bring windshield wiper into the service position. Refer to => [ Wipers, Bringing into Service Position ] Wipers, Bringing Into Service Position.

- Lift off the wiper arm from the front windshield.

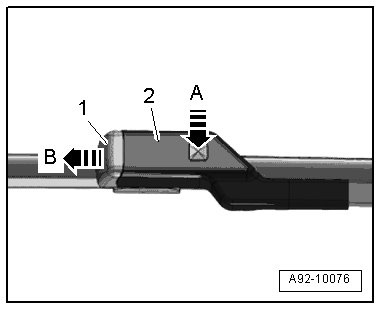

- Press the retaining clip - arrow A -.

- Push the wiper blade - 1 - off the wiper arm - 2 - - arrow B -.

- Remove the wiper blade.

Installing

There is a risk of damaging the body.

• The driver and passenger side wiper blades are different lengths.

Install in reverse order of removal, observing the following:

- Guide the wiper blade - 1 - parallel into the wiper arm - 2 - - arrow -. Slide the wiper blade on until the retaining clips engage in the wiper arm.






- If the windshield wiper switch is operated or a speed of 6 km/h (4 mph) is exceeded, the wipers leave the "service position".
