Valet Switch: Service and Repair







Valet Parking Lock Button (E536)

Removing






- Remove the glove compartment.

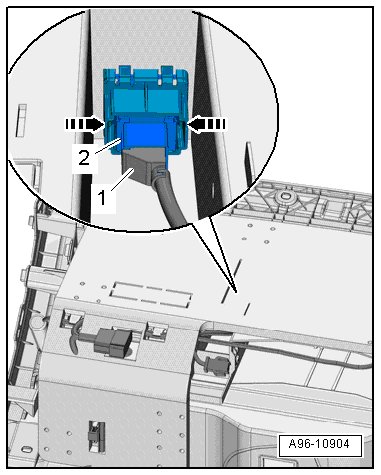

- Open the retainers - arrows - and remove the valet parking lock button - 2 - forward.

- Disconnect the electrical connector - 1 -.

Installing

Install in reverse order of removal. Note the following:

- Install the glove compartment.
