Impact Sensor: Locations

Airbag Systems

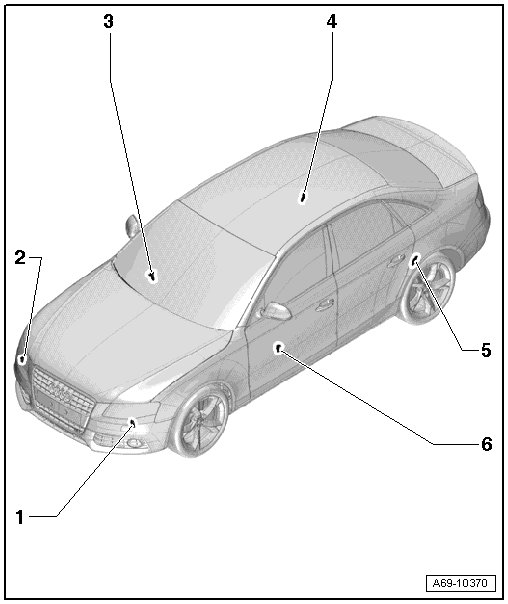

Airbag Crash Sensors Overview



Note:
• The crash sensors in the Sedan are illustrated






1 Driver Front Airbag Crash Sensor -G283-
• Location: on the headlamp housing bracket => [ Front Airbag Crash Sensor ] See Image Below.
2 Front Passenger Front Airbag Crash Sensor -G284-
• Location: on the headlamp housing bracket => [ Front Airbag Crash Sensor ] See Image Below.
3 Front Passenger Side Airbag Crash Sensor -G180-
• Location: in the door => [ Side Airbag Crash Sensor ] See Image Below.
4 Rear Side Airbag Crash Sensor (on front Passenger side) -G257-
• Location: On the inner wheel housing under the side trim => [ Rear Side Airbag Crash Sensor ] See Image Below.
5 Rear Side Airbag Crash Sensor (on Driver side) -G256-
• Location: On the inner wheel housing under the side trim => [ Rear Side Airbag Crash Sensor ] See Image Below.
6 Driver Side Airbag Crash Sensor -G179-
• Location: in the door => [ Side Airbag Crash Sensor ] See Image Below.

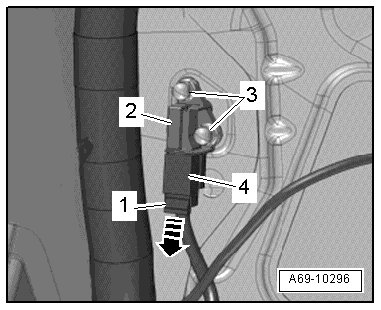

Front Airbag Crash Sensor






2 - Driver Front Airbag Crash Sensor -G283- and Front Passenger Front Airbag Crash Sensor -G284-
- Similar installation for right and left

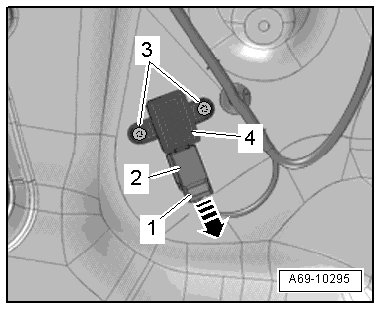

Side Airbag Crash Sensor






4 - Driver Side Airbag Crash Sensor -G179- and Front Passenger Side Airbag Crash Sensor -G180-
- Similar installation for right and left

Rear Side Airbag Crash Sensor






2 - Rear Side Airbag Crash Sensor (on Driver side) -G256- and Rear Side Airbag Crash Sensor (on front Passenger side) -G257-
- Similar installation for right and left
