Disassembling/Assembling Centrifugal Governor

Disassembling/Assembling Centrifugal Governor

(Governor Removed) Removing and Installing Centrifugal Governor

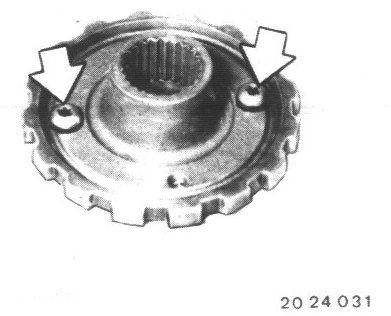

- Detach parking lock gear on centrifugal governor.
- Tightening torque: Mechanical Specifications

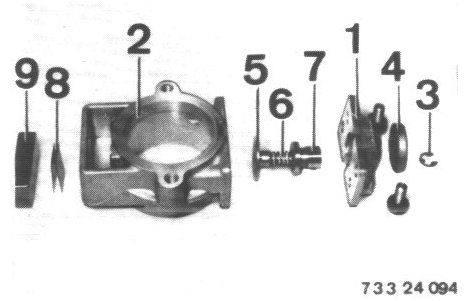

- Take off cover (1) on case (2).
- Lift out retainer (3) and remove washer (4) Remove governor piston (5), spring (6) and governor bushing (7).
Installation:
- Governor piston must slide easily in governor bushing.
- Remove spring clip (8) and balance weight (9).
