Dashboard / Instrument Panel: Service and Repair

- Disconnect battery ground lead.

- Remove console. Service and Repair

- Remove front roof liner plate. Service and Repair

- Remove light switch. Service and Repair

- Remove fog light switch.

- Remove printed circuit board for check control.

- Remove complete instrument carrier. Service and Repair

- Remove heater controls. Service and Repair

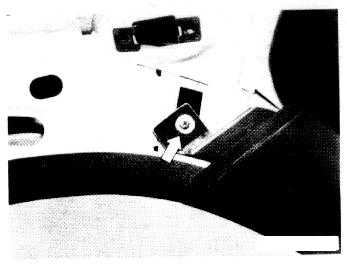

- Detach front roof pillar trim at top on left and right sides, and lift out of clips.

- Take three instrument light bulb holders out of holders.

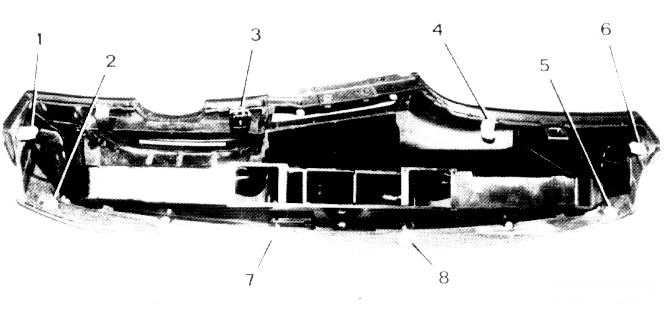

- Unscrew nuts (1 ... 6).

- Pull knee guard off of instrument panel trim partially on left and right sides.

- Lift rear.

- Pull back slightly and turn out to the right.

• Installation: Center instrument panel trim before tightening. Press clips (7 and 8) into holders.

- Reverse procedure to install.
