Ignition Switch: Service and Repair

Steering Lock/Ignition Switch, Removing and Installing:

- Disconnect minus lead at battery.
- Remove and install trim lower section.
Service and Repair

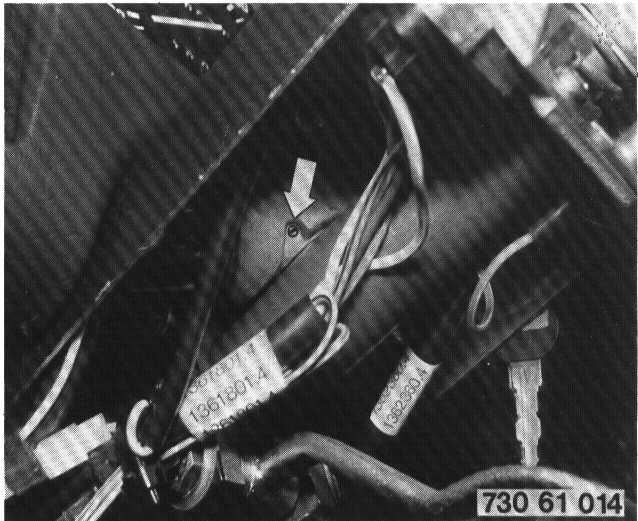

- Unscrew stud screw and pull out ignition switch.

Installation Note!



- Turn back ignition key all the way.

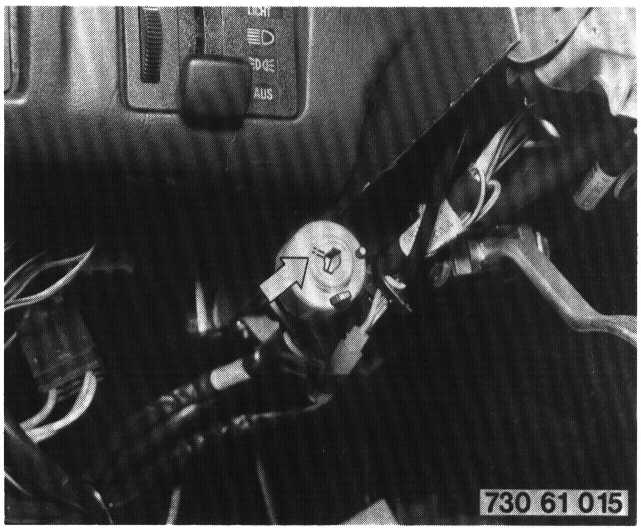

- Position ignition switch at 0.
- Note mark and install ignition switch in this position.




- Loosen wire straps.
- Disconnect single plug.
- Pull off central plug and remove ignition switch.
