Remove and Install

- Unscrew cap on brake fluid tank.

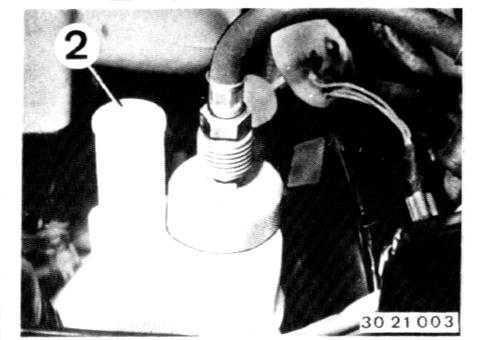

- Remove float container (2).
- Draw off brake fluid in tank to lower level to connection for filling pipe.





- Unscrew slave cylinder on transmission.
- Remove slave cylinder.

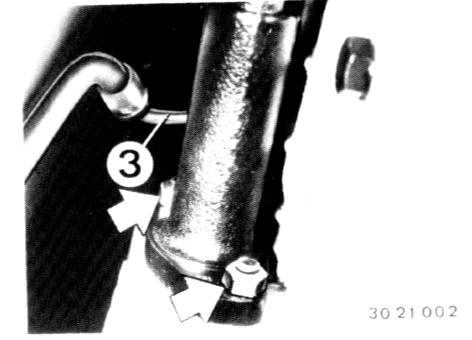

- Disconnect pipe (3).

NOTE: A slave cylinder with a diameter of 22.2 mm (0.874 in), instead of 20.64 mm (0.809 in), must be installed for the version with a double mass flywheel, to avoid contact of the release lever when the clutch pedal is floored.

Installation Note:
- Bleeder screw faces down.
- Install front push rod with Molykote Longterm 2.
- Bleed clutch.
