Fuel Pump: Service and Repair

NOTE: If necessary, draw off some fuel with a scavenging pump.

1. Lift out the rear seat cushion.
2. Partially remove the insulation sheet.

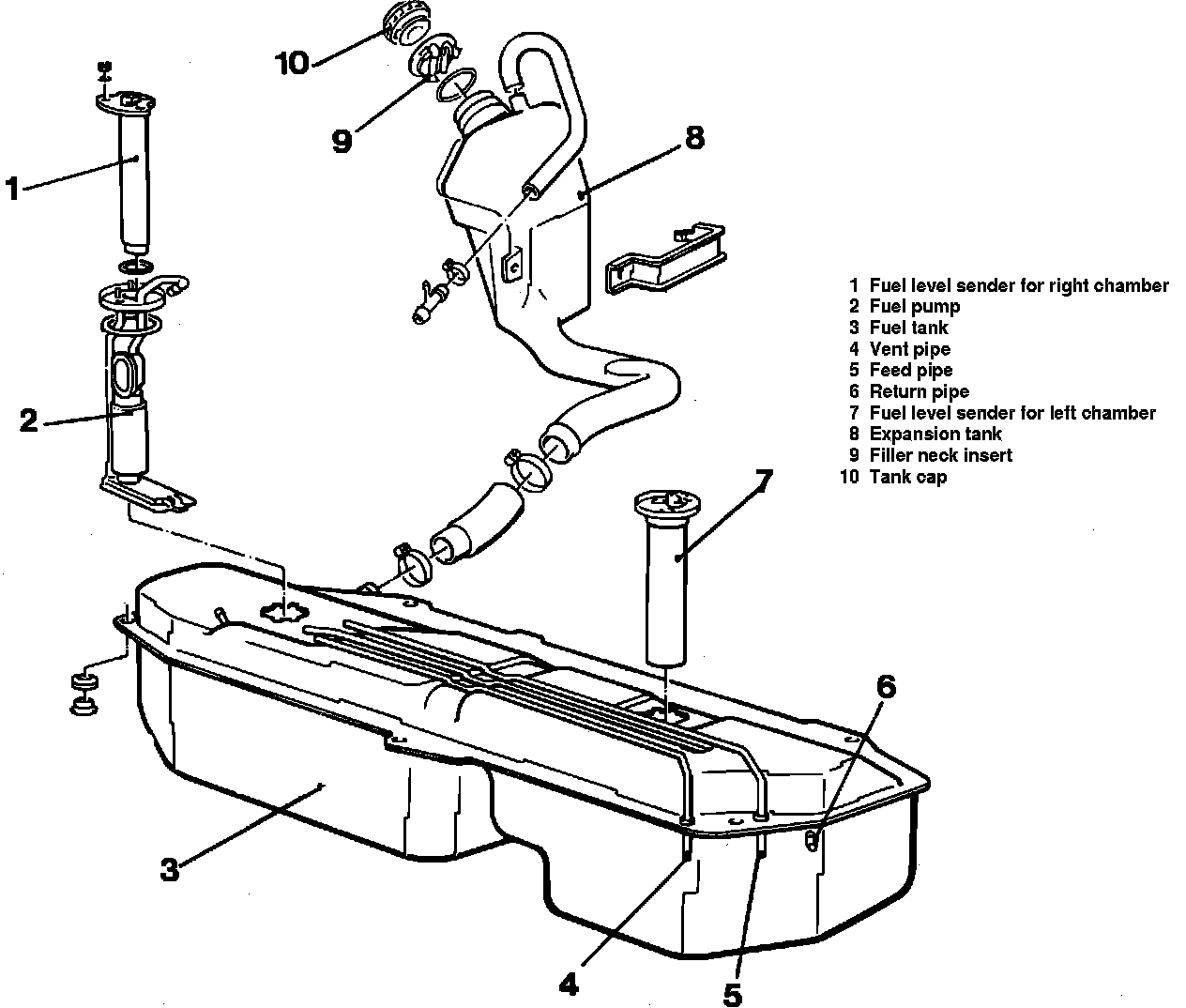

Fuel Tank And Components:

3. Remove the inspection plate located at the right side of the rear passenger area.
4. Remove the electrical connections and the fuel supply hose. Plug the fuel supply hose.
5. Remove the four nuts retaining the fuel level sender and remove the sender.

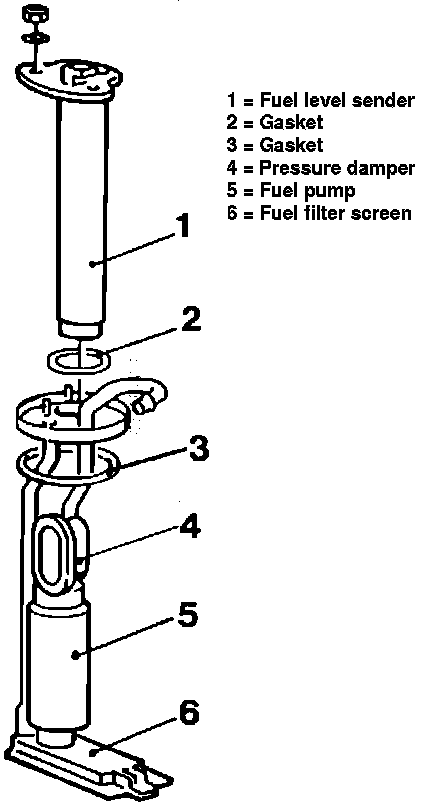

Fuel Pump View:

6. Turn the fuel pump body counterclockwise and pull it out carefully.
7. With a new seal reinstall the fuel pump assembly in the reverse manner.
