Fog/Driving Lamp

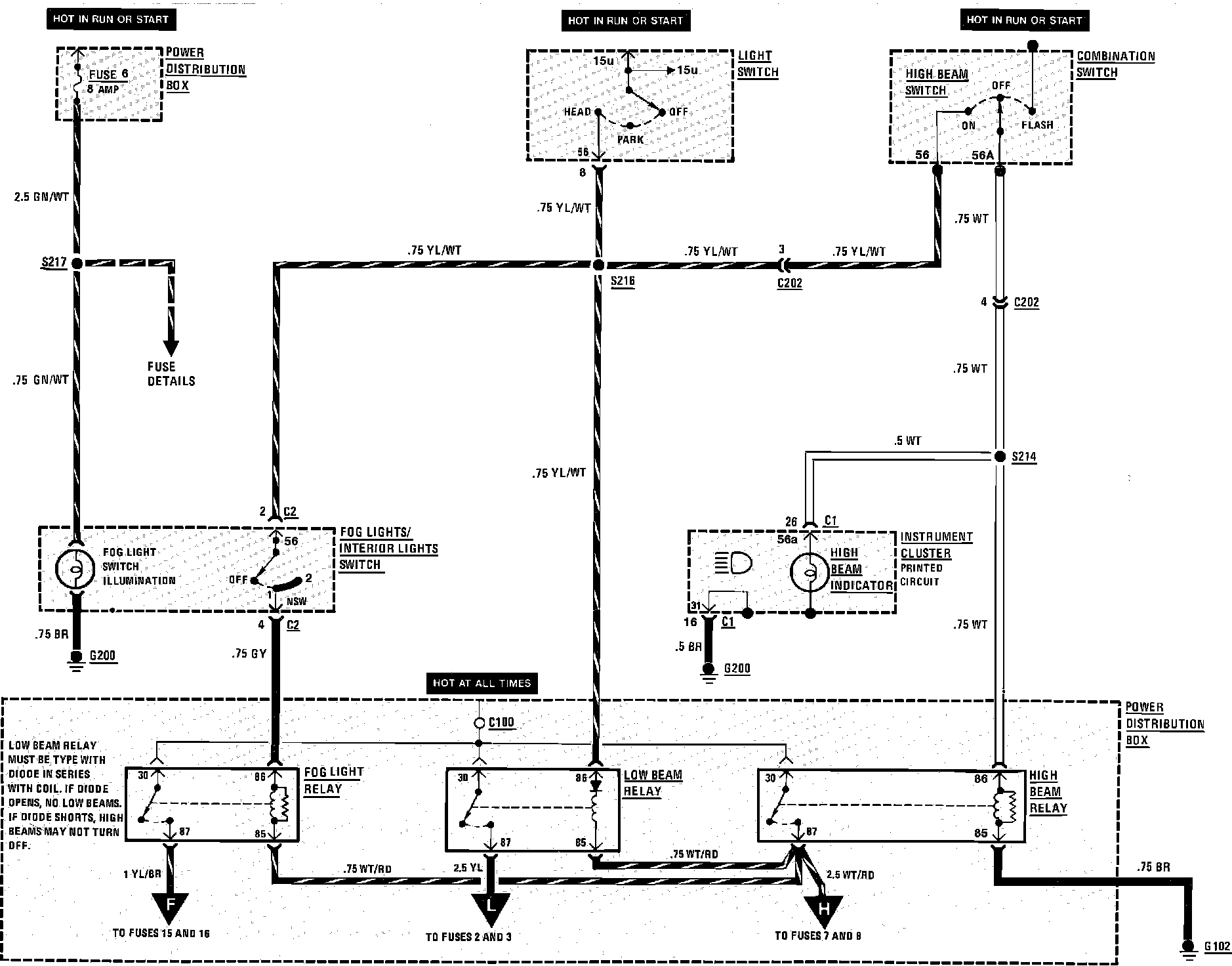

Fig. 165 Fog Lights & Headlights Wiring Circuit:



Fig. 165 Fog Lights & Headlights Wiring Circuit:
