Oil Pan: Service and Repair

REMOVING AND INSTALLING OIL PAN





Lift out and disconnect plug.

Drain oil.

Installation:
Add engine oil.




Unscrew steering gear on front axle carrier.

Unscrew cover/reinforcement plate.




Unscrew oil pan.

Unscrew oil pump and remove oil pan.

Installation:
Insert oil pump drive shaft.

Replace gasket.




Installation:
Clean sealing surfaces.

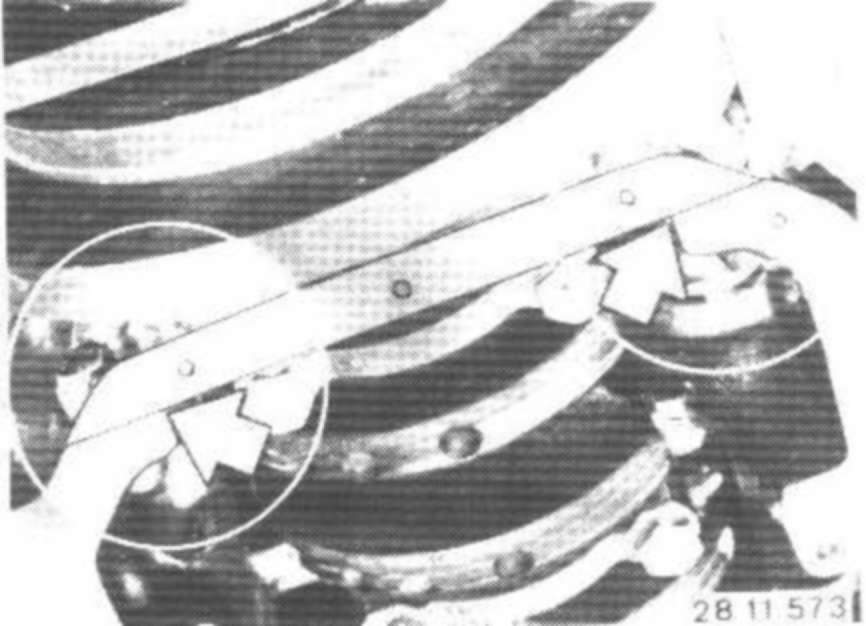

Coat joint surfaces on timing case covers and end cover with a brush on universal sealing compound.
