Electronic Brake Control Module: Service and Repair

REMOVE
- Unscrew E-Box cover in engine compartment on right side.

CAUTION: Only remove or install control unit after turning "Off" the ignition.

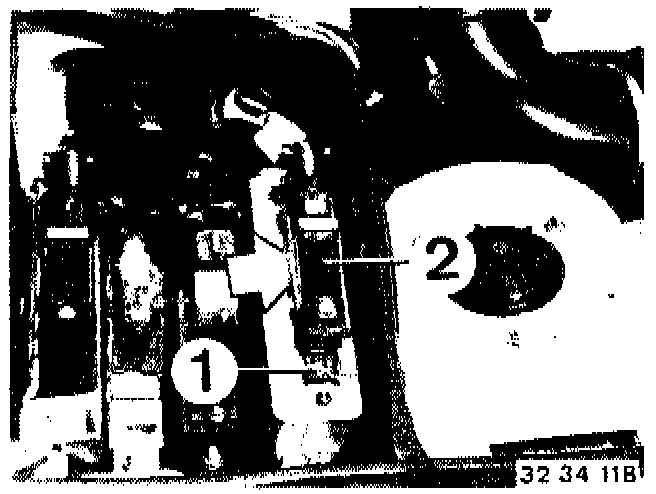

- Push back clamp (1) and pull off right side, then disengage left side of multiple pin plug.

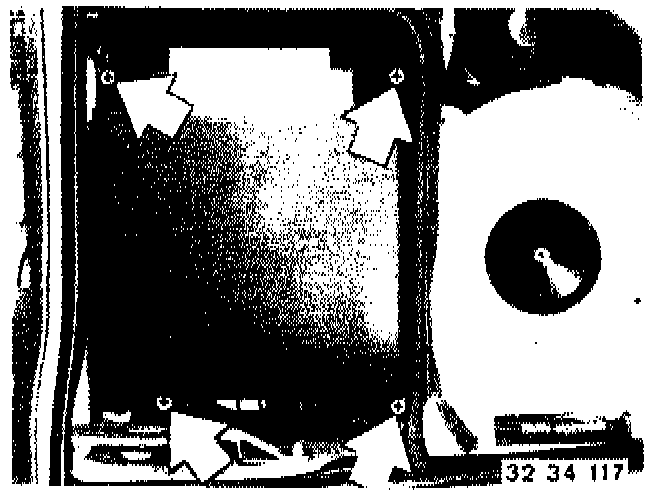

- Unscrew control unit on body.

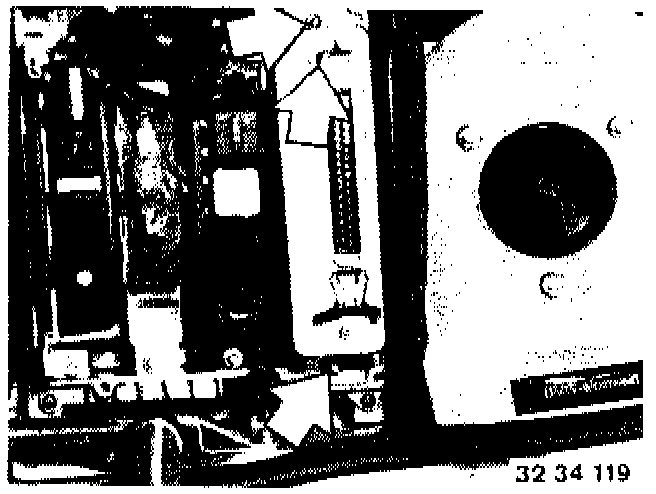

Installation Note: Check for correct connections when replacing the control unit. The multiple pin plug has a tab on the left side, for which the control unit must have an opening.

INSTALL
- Install in reverse order. Pay attention to installation notes.
- Check function of Antilock Brake System (ABS) for proper operation.
