Infrared Transmitter - Production Changes
Group 66Electronic Transmitting/ Receiving Systems
Bulletin Number
66 01 89 (1810)
Woodcliff Lake, NJ
February 1989
Technical Dept.
SUBJECT:

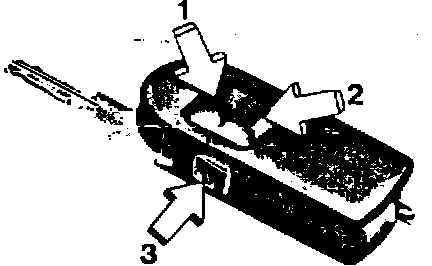

Infrared Remote Control Transmitter
Situation:
Starting in 9/88 several changes were made to the operation of the infrared transmitter.
Please take note of these changes as some of the functions are reversed on the transmitter.
8/88 and earlier production
1) Unlocking
2) Locking and closing of the windows and sunroof if held down
3) Double locking, activation of DWA (only if button is pressed within 15 seconds after pressing button 2)
9/88 and later production
1) Locking and closing of the windows and sunroof if held down
2) Unlocking
3) Double locking and activation of DWA (only if button is pressed within 15 seconds after pressing button 1)
