With Fold Down Rear Seat

Rear seat cushion and backrest, removing and installing




1. Lift strap at rear of seat bottom cushion and pull cushion up.

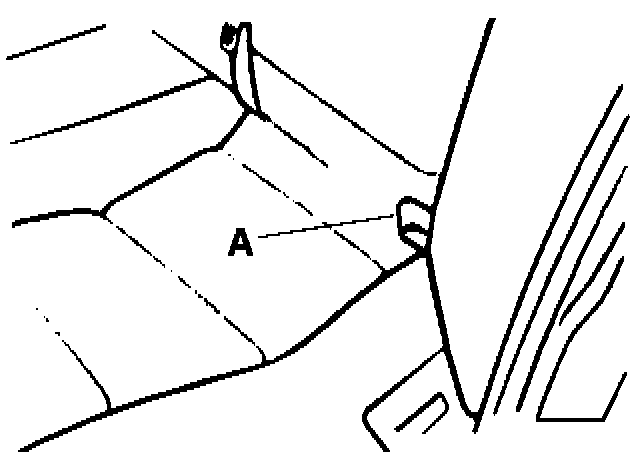

2. Compress both seat cushion locking levers and lift cushion forward and out.

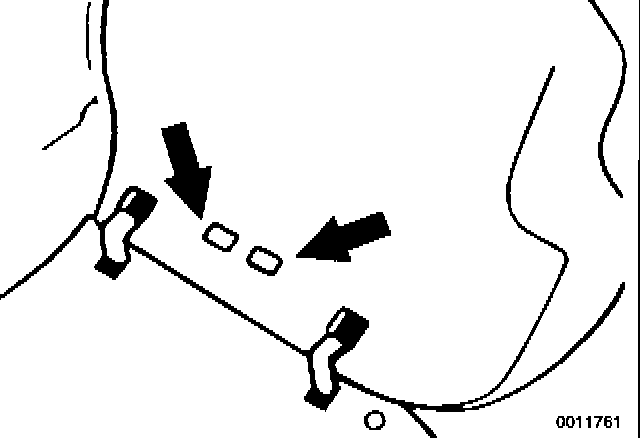

3. Tilt backrest forward and use flat screwdriver to unlock retainers. Lift out backrest.

4. Installation is the reverse of removal. Make sure backrest locks at top seat belt connection
