Rear Disc Brake Pads Replace

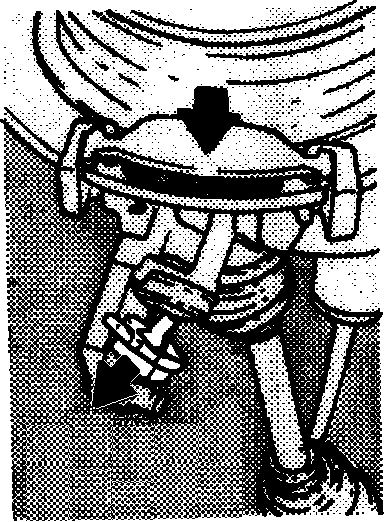

Fig. 6 Rear disc brake pad removal:

1. Remove wheels and disconnect electrical connector from wear sensor, if equipped.
2. Pry caps off caliper guide bolts and remove guide bolts.
3. Pry outer pad retaining clamp from caliper, then remove caliper.
4. Remove outer pad from caliper bracket and inner pad and spring from caliper piston, Fig. 6.
5. Reverse procedure to install, torquing guide bolts to 22-25 ft.lbs.
