Ignition Rotor: Service and Repair

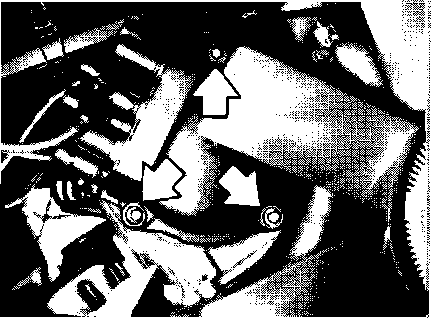

Distributor Cap:

WARNING: Radiator fins will cut yours hand.

1. Remove the engine cooling fan.
2. Unscrew the three 8 mm hex screws securing the distributor cap and set the cap aside.

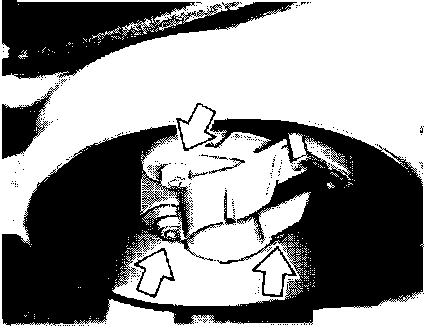

Rotor Location:

3. Carefully unscrew the three 3 mm Allen head screws and remove the ignition rotor.
4. Reinstall in the reverse manner.
