Home >> BMW >> 1989 >> 750iL (E32/2) V12-4988cc 5.0L SOHC (M70) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> TXD & Power >> Part 4 of 7

Part 4 of 7

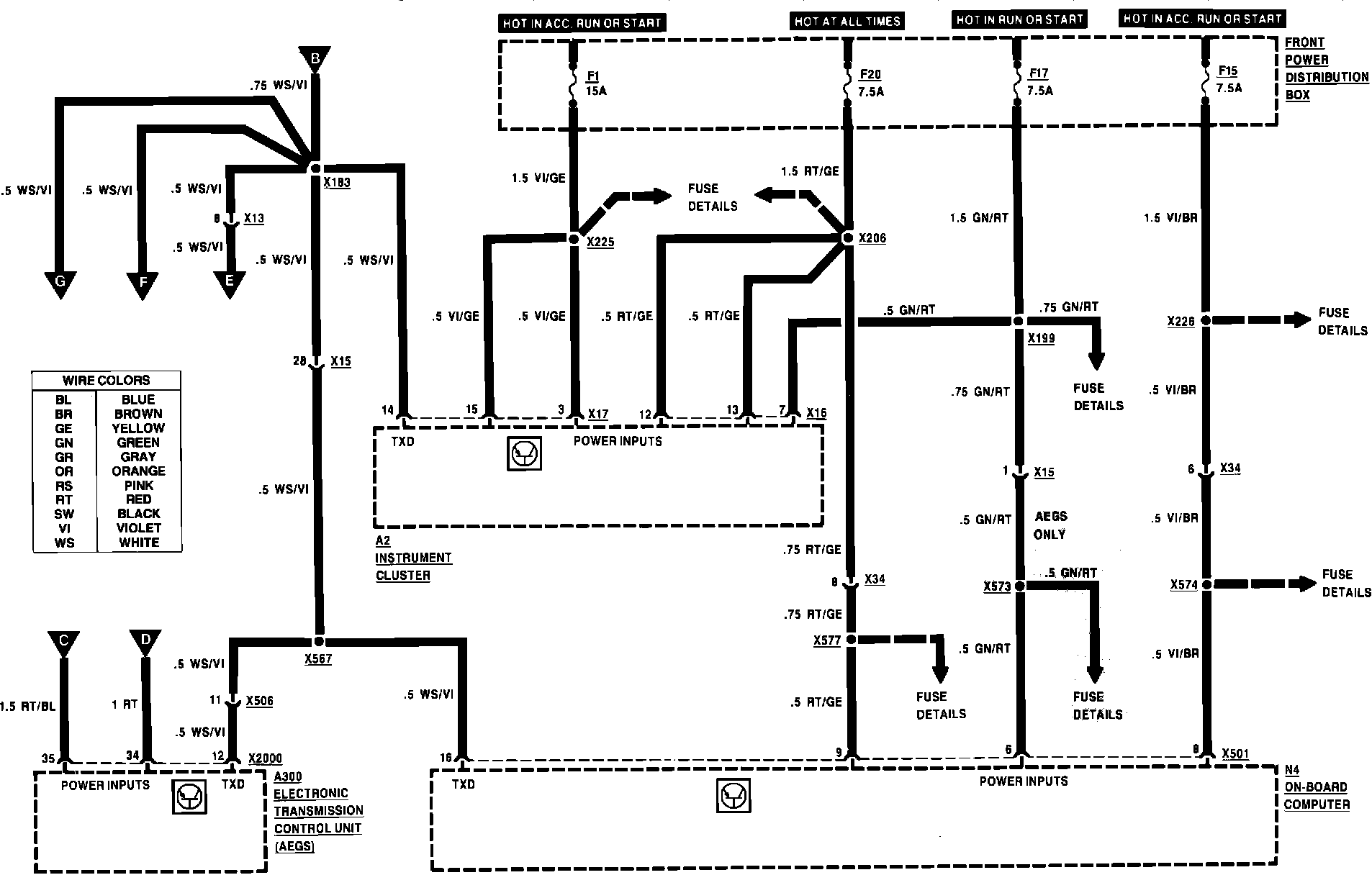

Diagnostic Link (TXD & Power). Wiring Diagram:
