Pin Assignments at 55-pin DME Control Unit Connector X1600
Pin Assignments at 55-pin DME Control Unit Connector X1600
Pin Assignments 1 - 12:
Pin Assignments 13 - 25:
Pin Assignments 26 - 39:
Pin Assignments 40 - 53:

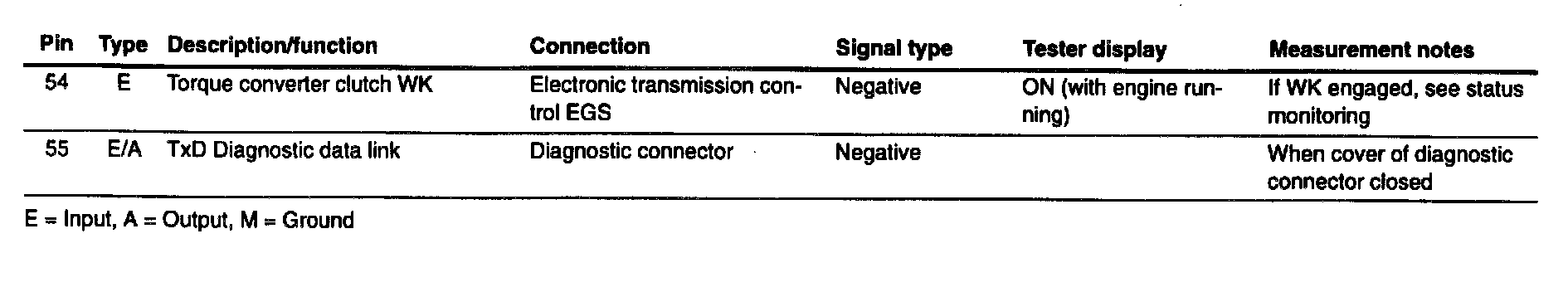

Pin Assignments 54 - 55:
