Motorola Mobile Phones - Replacement Parts

Group 84
Phone,
Navigation Systems

Bulletin Number
84 13 97

Woodcliff Lake, NJ
December 1997
Project Engineering

SUBJECT:
Motorola Mobile Phones: Replacement Parts Availability

MODEL:
All





Situation:

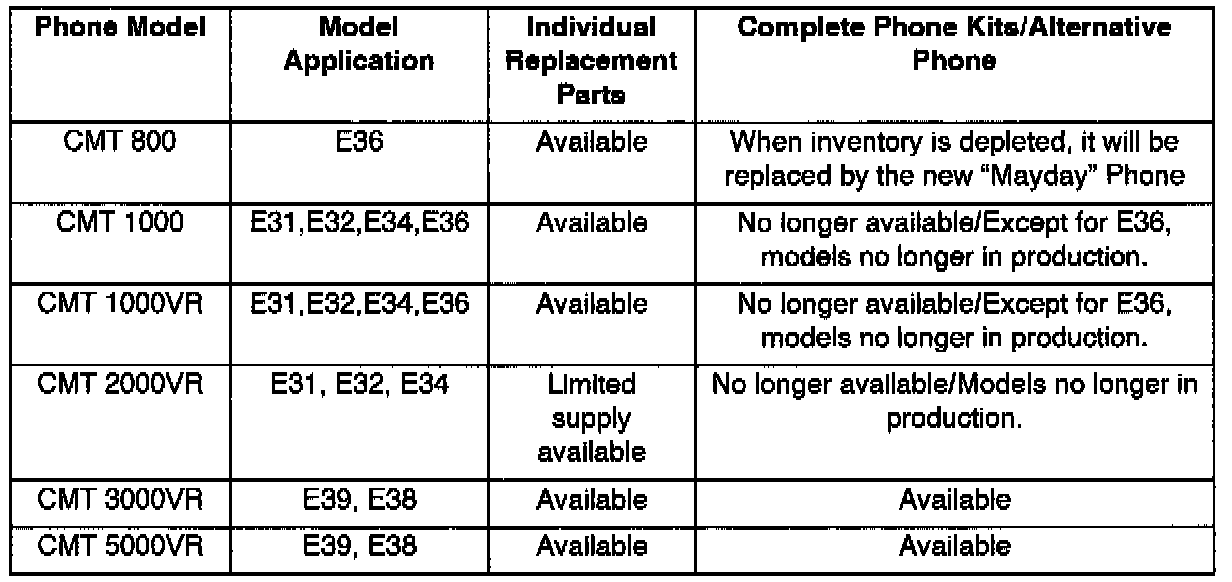

The table provides information regarding availability of spare parts and complete kits for different models of Motorola Cellular phones.

Important:
The CMT 3000VR Transceiver is not backwards compatible with any other type of a Transceiver.

The CMT 5000VR Transceiver is backwards compatible with CMT 3000VR Transceiver, since it can be used as a replacement part on a customer complaint basis only. A customer who has a CMT 3000VR Transceiver replaced with a CMT 5000VR, will gain the advantage of having an Authenticated Transceiver, but will not be able to utilize all of CMT 5000VR features (e.g. the simplified keypad enable/disable), due to the fact that the remaining CMT 3000VR components (these can not be changed) do not support the advanced features of the CMT 5000VR.

Warranty Information:
For information only.
