Replacing Cable For Fresh Air Flap

Procedure:
- Disconnect battery ground lead.
- Remove left side underdash panel.
- Remove lower portion of center console.
- Open glove box.

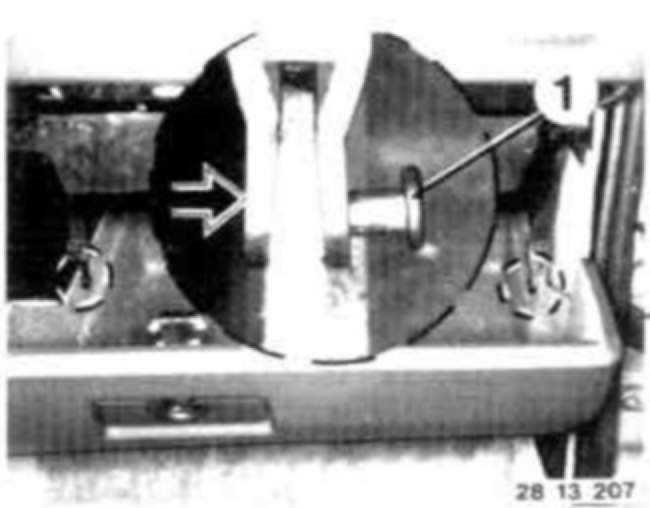

- Disconnect pins (1) of both retaining straps.

- Remove radio opening mask or radio.

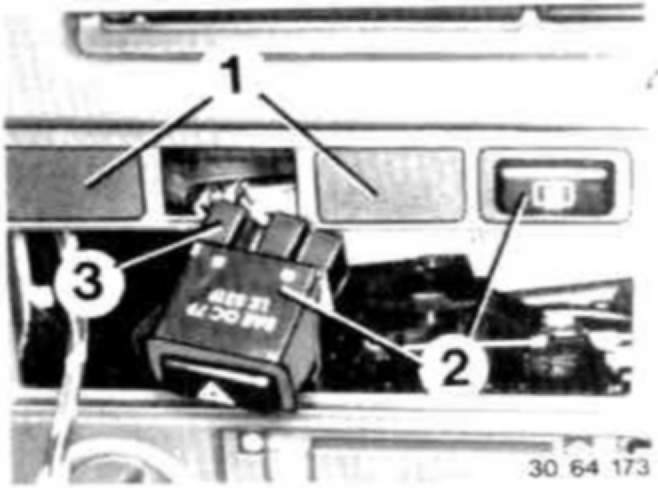

- Pull opening covers (1) or switches (2) out of control panel.
- Pull off plugs (3) on switches (2).

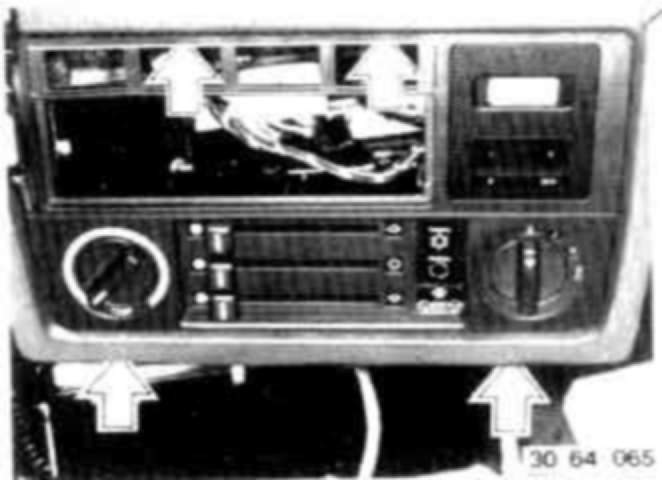

- Unscrew screws.
- Pull out control panel slightly.





- Unscrew screw (1).
- Take off trim panel (2).

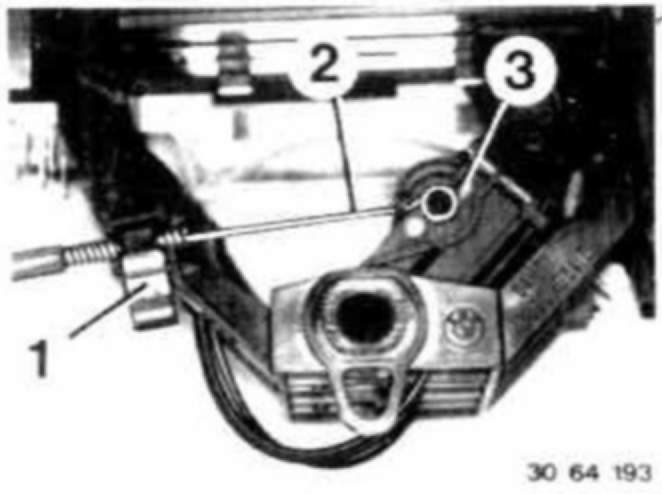

- Remove cable clamp (1).
- Disconnect cable 12) on lever (3) and remove.

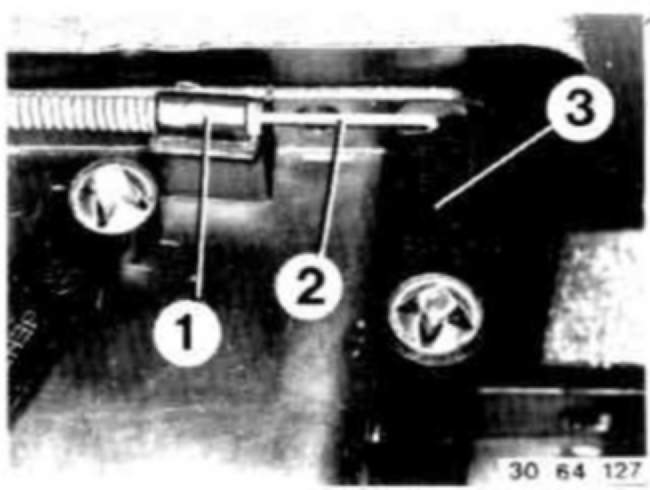

- Remove cable clamp (1).
- Disconnect cable (2) on lever (3) and remove.

Installation Notes:





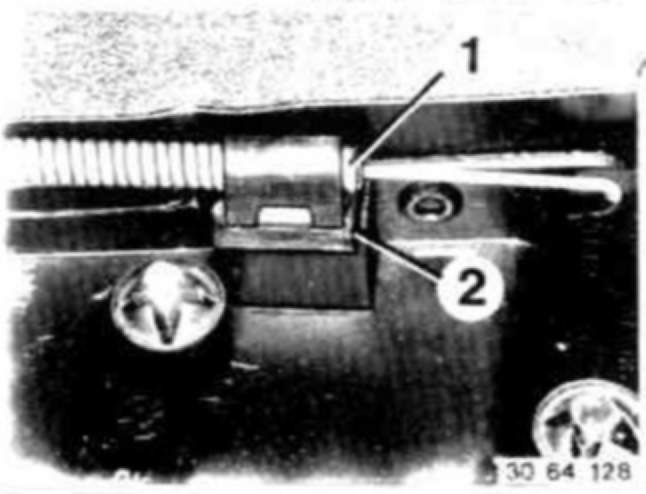

- Cable sleeve (1) must be flush with stop (2).

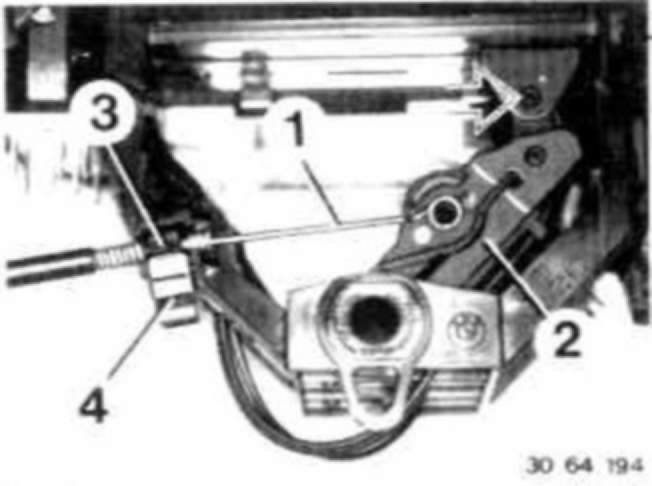

- Connect cable (1) in sliding control (2).
- Push sliding control and air flap against stop.
- Turn sleeve (3) enough until it can be placed in opening.
- Secure cable with clamp (4).
