R & R Control Module (Diagnosis Unit)

WARNING: Review Service Precautions. Improper handling could cause activation of the airbag(s) and lead to injuries!

REMOVE
- Disconnect battery and cover negative pole or terminal.
- A waiting period of approximately 5 minutes should be observed before beginning electrical work to allow the capacitor charge to dissipate.





- Remove lower steering column trim section.
- Disconnect plug connection for airbag (orange).
- Remove lower dashboard trim (drivers side).
- Remove knee guard.





- Remove ABS control unit.

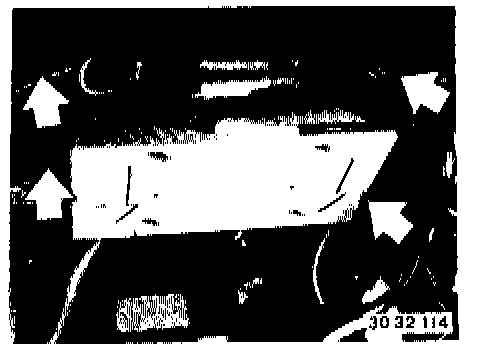

- Unscrew nuts and disconnect plug.

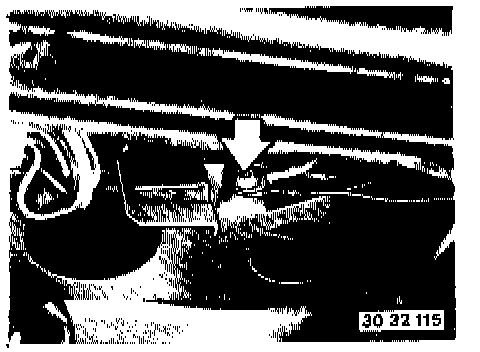

- Disconnect ground lead on the central ground point.
- Remove the control module.

INSTALL
- Install in reverse order.

NOTE: Arrow on module faces forward.

- Check for possible trouble codes.
- Verify proper system operation.
