Output Details

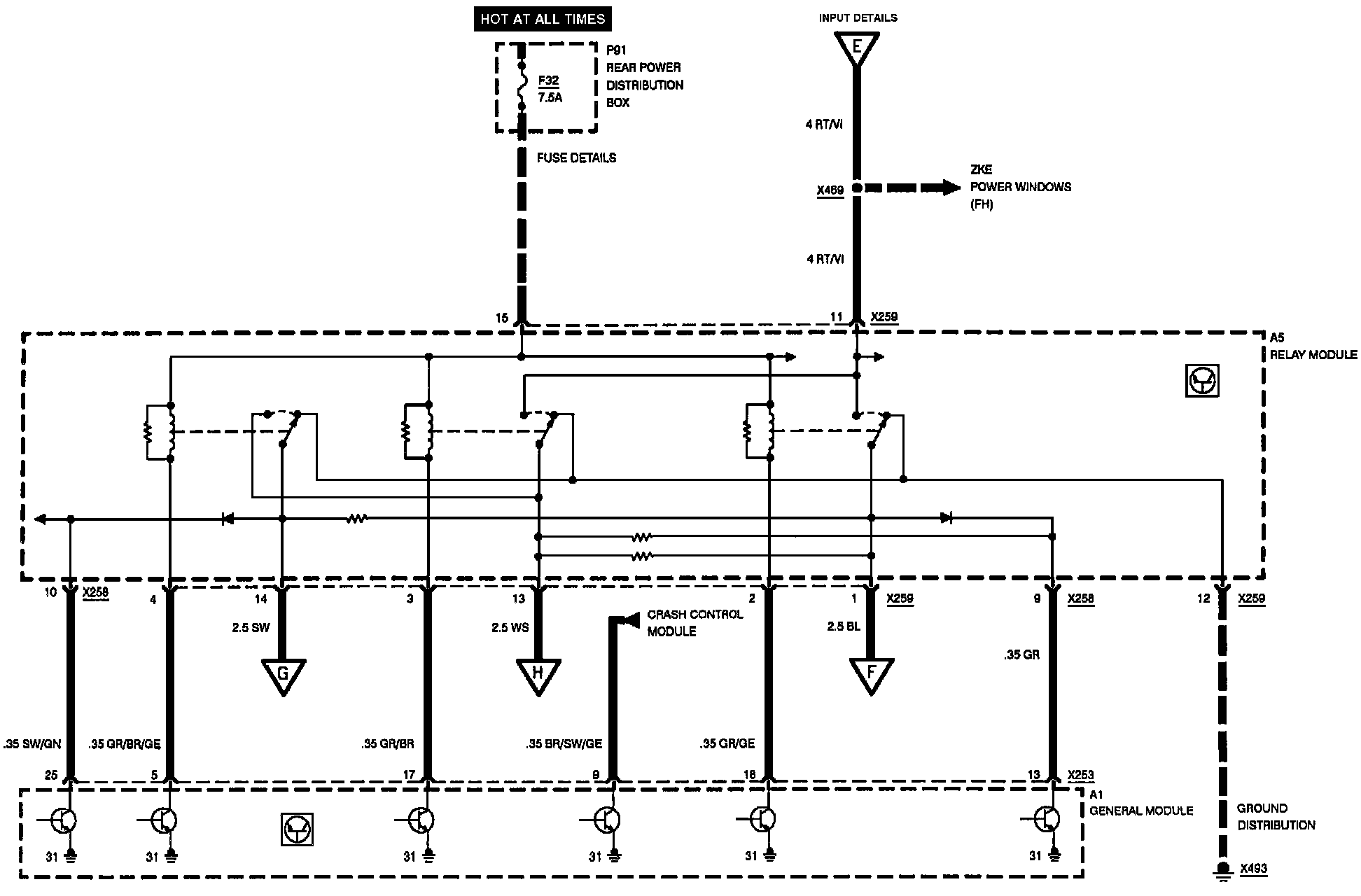

ZKE Central Locking: Output Details:

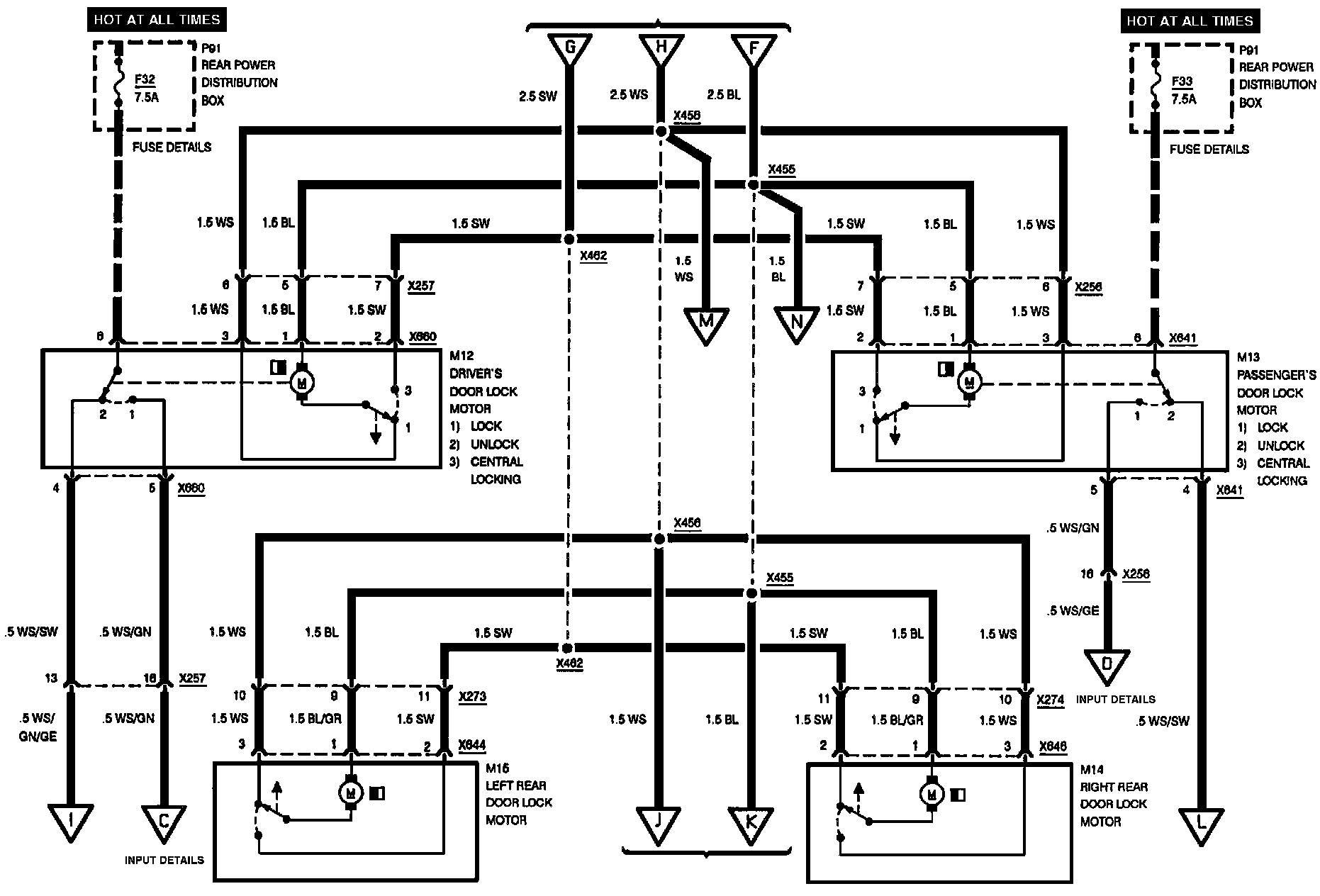

ZKE Central Locking: Output Details:



ZKE Central Locking: Output Details:
